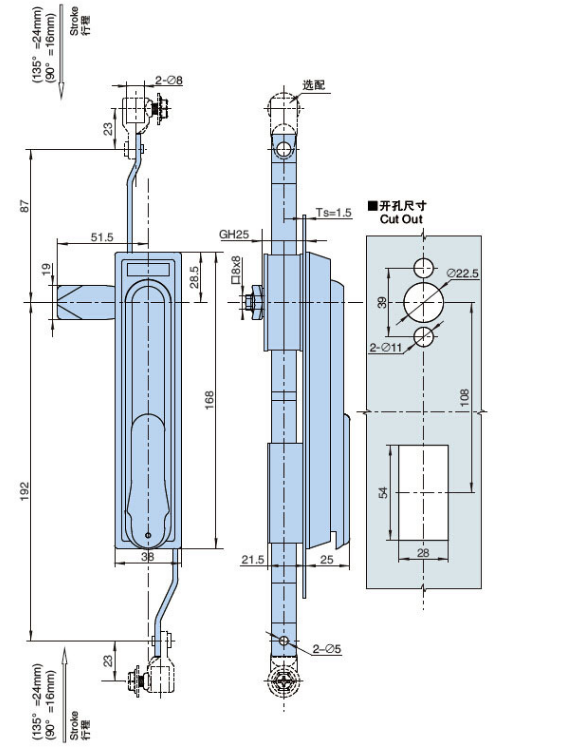

KL100-4-1

1.Material: PA-6 lock body, zinc alloy shaft, nickel plated transmission strip;

2.Surface treatment: Bright chrome plated lock core, gear box, blue white zinc plated pull rod

3.Applicable door panel thickness: 1-3mm;

4.Note: Lock plate opening 8 × 8
