KL-111166

1.锌合金锁体、转轴、镀锌压板、锁片(可选碳钢或者不锈钢)2.表面处理:亮铬3.结构说明:解锁时手柄自动弹出锁芯回位时自动锁闭(通过调整定位件可实现左右开门)4.可分为带挂和不带挂两个型号



1. Zinc alloy lock body, shaft, galvanized pressure plate, lock plate (optional carbon steel or stainless steel)

2. Surface treatment: Bright chrome

3. Structural description: When unlocked, the handle will automatically pop out and the lock cylinder will return to its original position, and it will automatically lock (the left and right doors can be opened by adjusting the positioning component)

4. It can be divided into two models: with and without hanging

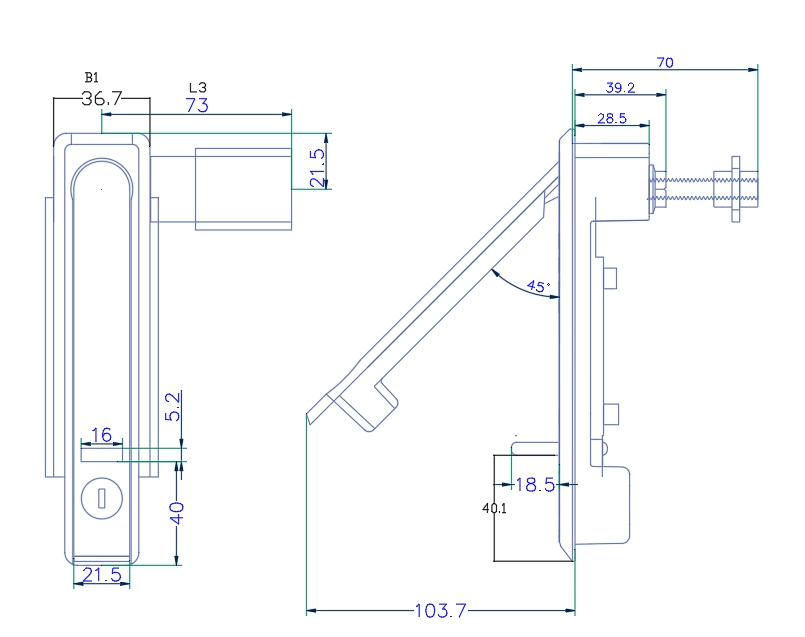

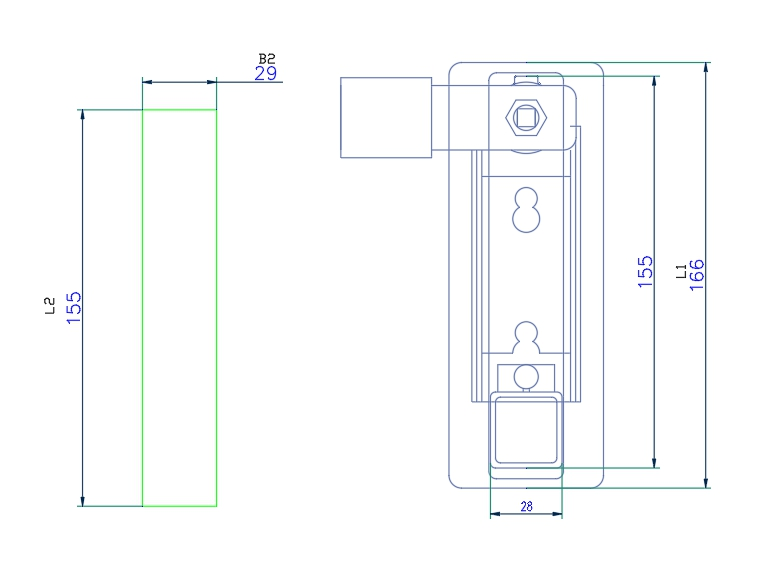

基本尺寸/Basic dimensions

产品型号

Product Model

产品重量

weight

装箱数
L1L2
L3B1B2KL-111166

1661557336.729
