KL-MS-305

1.材质：锌合金主体、镀锌压板、锁片2.表面处理：喷无光黑、镀亮铬3.适用门板厚度：1-4MM

PDF下载 2D下载 3D下载


1. Material: Zinc alloy body, galvanized pressure plate, locking plate

2. Surface treatment: Spray matte black and plated with bright chromium

3. Applicable door panel thickness: 1-4MM

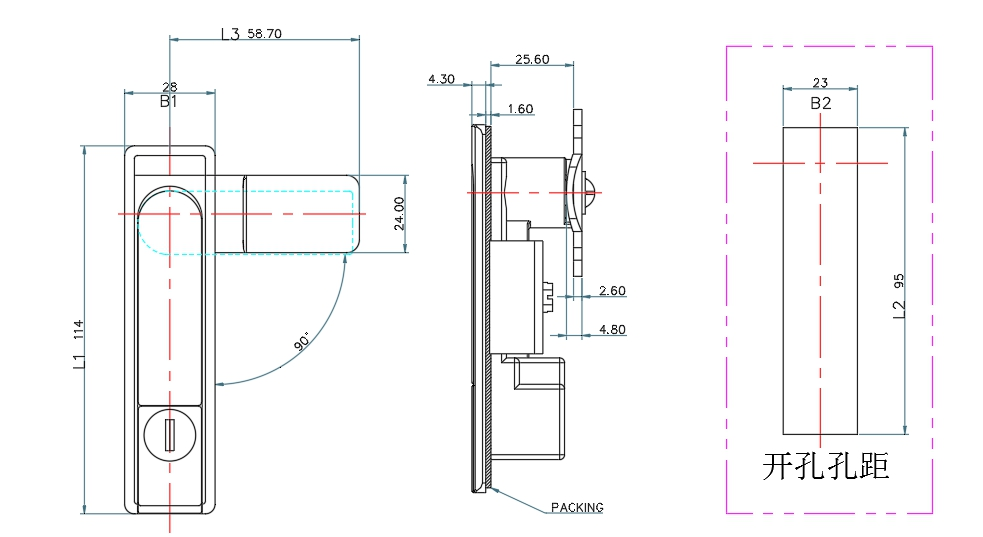

基本尺寸/Basic dimensions产品型号/Product model

产品单重（克）

Product weight per unit

装箱数

PCS

L1L2L3B1B2KL-MS-305
50
1149558.72823
