KL-MS609

1.材质：锌合金主体2.表面处理:无光黑、铬3.打开方式：钥匙左旋90°或180°后按压中心按钮4.适用门板厚度：厚度1-5MM

1. Material: Zinc alloy body

2. Surface treatment: matte black, chromium

3. Opening method: Turn the key left 90 ° or 180 ° and press the center button

4. Applicable door panel thickness: thickness 1-5mm

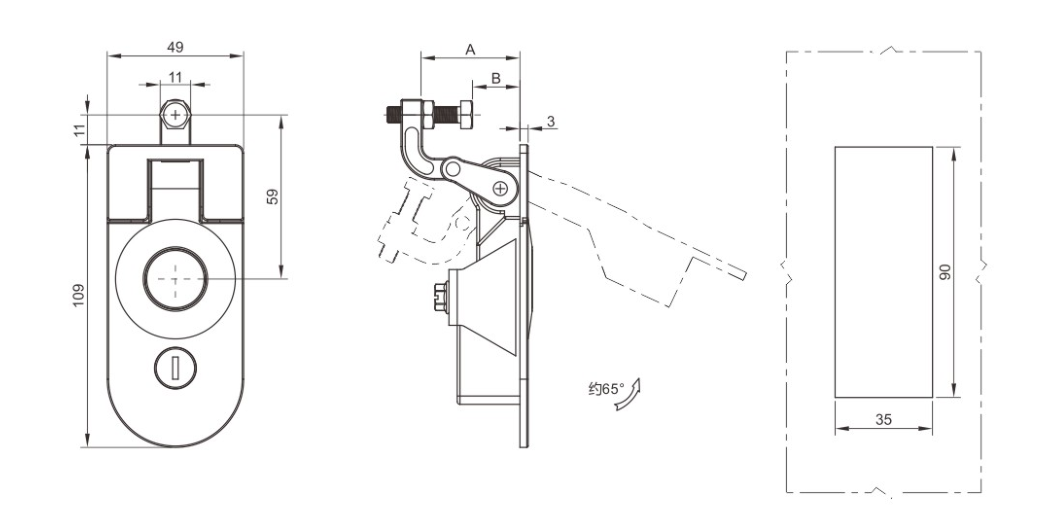

产品尺寸/Basic dimensions		产品型号 Product Model	产品单重 Weight	装箱数 PCS	备注
A	B	产品型号 Product Model	产品单重 Weight	装箱数 PCS	备注
21	0-15	MS-609-1	335g		锁芯左旋90°/Lock cylinder rotated 90 ° to the left
35	15-30	MS-609-2	340g		锁芯左旋90°/Lock cylinder rotated 90 ° to the left
52	30-45	MS-609-3	346g		锁芯左旋90°/Lock cylinder rotated 90 ° to the left
21	0-15	MS-609-1-1	335g		锁芯左旋180°/Lock cylinder rotated 180 ° to the left
35	15-30	MS-609-1-2	340g		锁芯左旋180°/Lock cylinder rotated 180 ° to the left
52	30-45	MS-609-1-3	346g		锁芯左旋180°/Lock cylinder rotated 180 ° to the left
