KL-103

1.材质：锌合金锁体，镀锌锁片、镀镍传动条2.表面处理：喷无光黑,镀沙铬3. 适用门板厚度：1~2mm

PDF下载 2D下载 3D下载

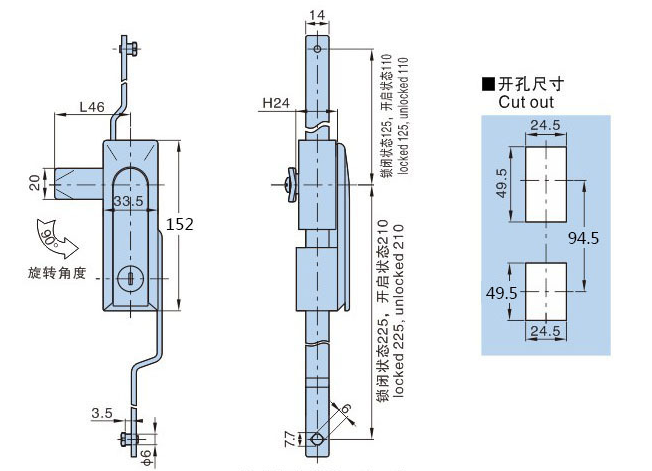

KL103-1-1

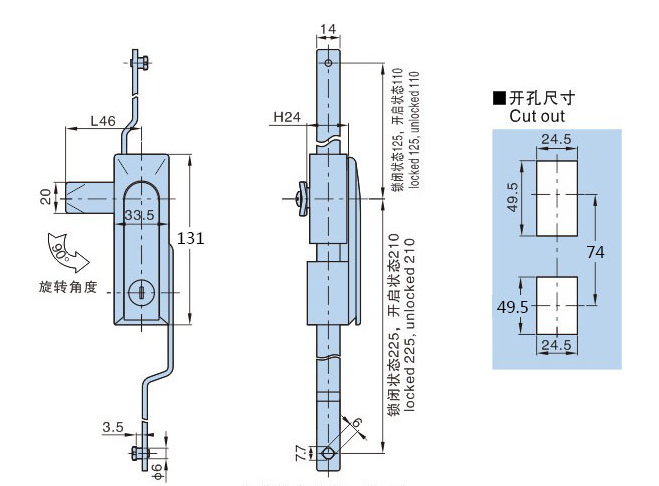

KL103-2-1

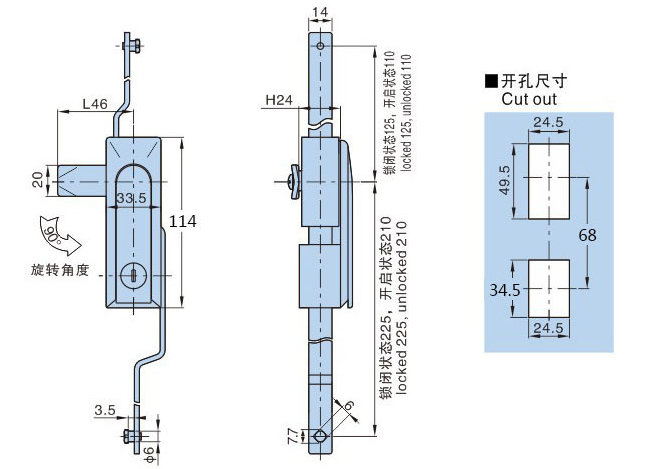

KL103-3-1

1.Material: Zinc alloy lock body, galvanized lock plate, nickel plated transmission strip

2.Surface treatment: Spray matte black, sand chrome plating

3.Applicable door panel thickness: 1-2mm

基本尺寸Dimensions产品型号Product Number产品单重(g)Weight装箱数Lot
L1L2L3
15294.549.5KL103-1-1525
50
1317449.5KL103-2-150050
1146834.5KL103-3-146250
