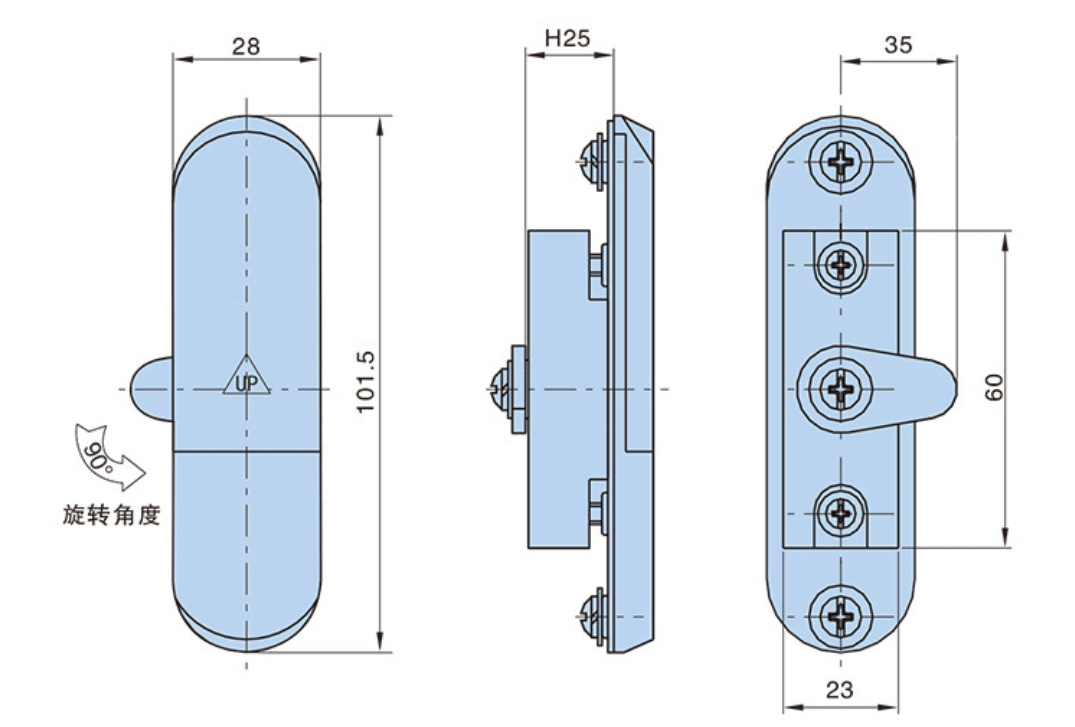

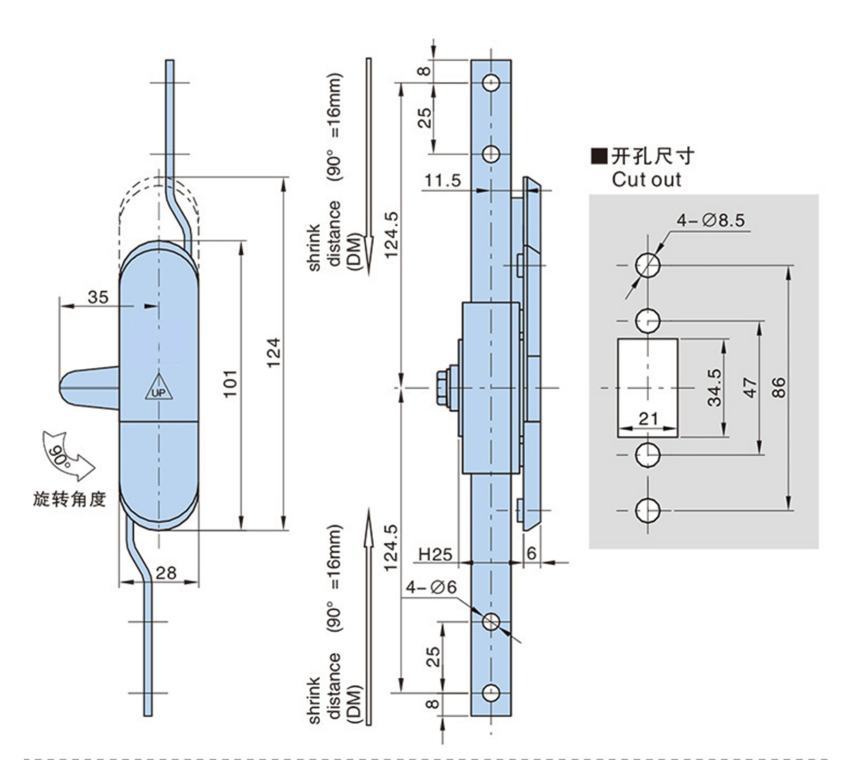

KL-103D

1.主体材质: 锌合金锁体、镀锌锁片、喷砂镀亮铬齿条2.表面处理:镀沙铬3.备注:锁片开孔7x7

PDF下载 2D下载 3D下载

KL103D-1系列


KL103D-2系列


1.Main material: Zinc alloy lock body, galvanized lock plate, sandblasted bright chrome plated gear rack

2.Surface treatment: sand chrome plating

3.Note: Lock plate opening 7x7

产品型号及特性 ProductNumber
产品单重(g)Weight装箱数Lot

镀沙铬

Gray chrome platin

一字锁芯

Double bit insert

三角锁芯Triangular insert
三点式门锁three point lockKL103D-1-1KL103D-1-2324
60
单点式门锁one point lockKL103D-2-1KL103D-2-2230100
