KL-460

1.主体材质:锌合金锁体、镀锌锁片、安装板、喷砂镀亮铬齿条.2.表面处理:镀沙铬、喷无光黑3.适用板厚:1~2.5mm4.备注:锁片开孔8x8

PDF下载 2D下载 3D下载


KL460-1-1 KL460-1G-1

1.Main material: Zinc alloy lock body, galvanized lock plate, mounting plate, sandblasted chrome plated gear rack

2.Surface treatment: sand chrome plating, matte black spray

3.Applicable plate thickness: 1-2.5mm

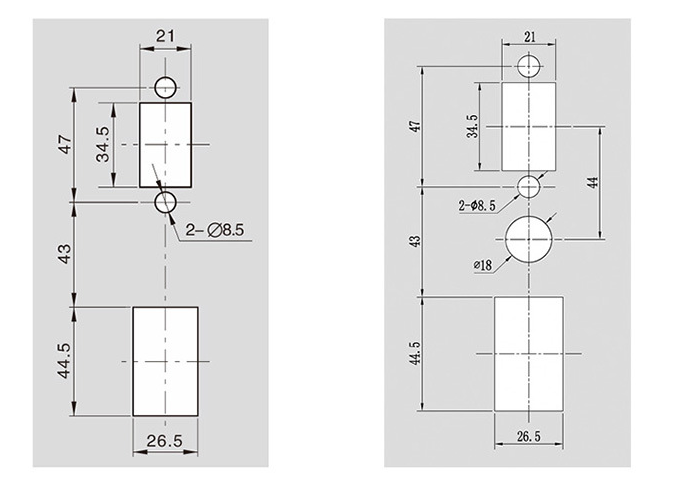

4.Note: Lock plate opening 8x8

型号 Product no.	特性说明Characteristic description	产品单重(g)Weight	装箱数Lot
460-1-1	不带挂装置w/opadlcok	530	50
460-1G-1	带挂装置with padlock	550	50
