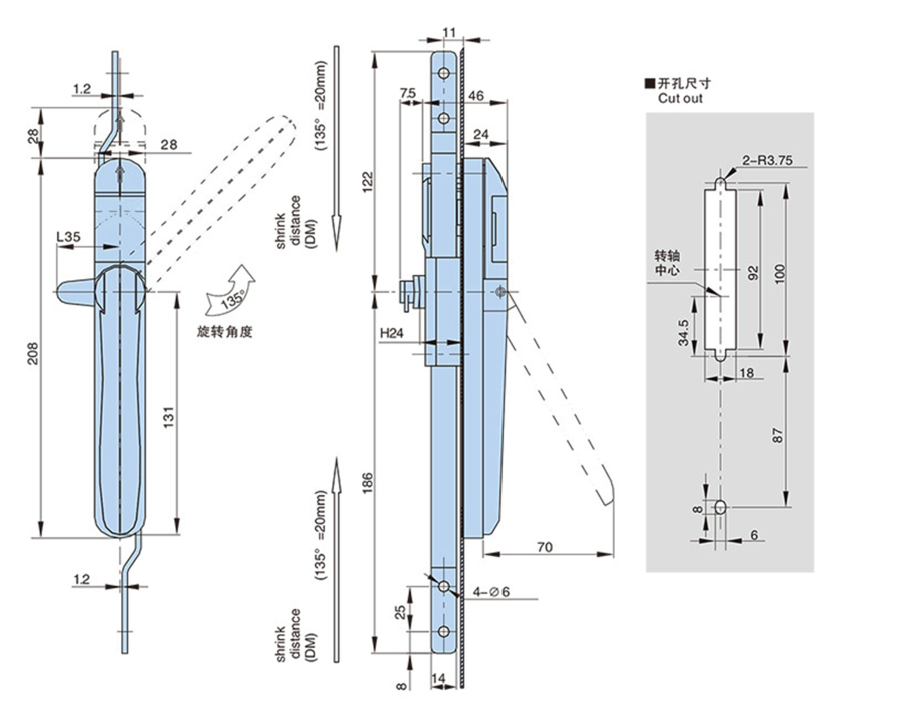

KL-483

1.主体材质:锌合金锁体，镀锌钢板、锁片、传动条2.门板厚度: 1~2MM3.备注:锁片开孔7x7，可配插片型锁芯，型号为483-1-1A

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy lock body, galvanized steel plate, lock plate, transmission strip.

2.Door plate thickness: 1-2MM.

3.Remarks: The lock plate has 7x7 ,holes and can be equipped with a plug-in type lock core. The model is 483-1-1A

产品型号及特性 ProductNumber

产品单重(g)

Weigh

装箱数

Lot

有锁芯 With keyKL483-1-1
70750
按钮型 Push buttonKL483-1-268550
