KL-484

1.主体材质:锌合金锁体、转轴，镀锌压板、锁片、镀镍传动条2.门板厚度: 1~2MM3.备注:锁片开孔7x7

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy lock body, shaft, galvanized pressure plate, lock plate, nickel plated transmission strip.

2.Door plate thickness: 1-2MM.

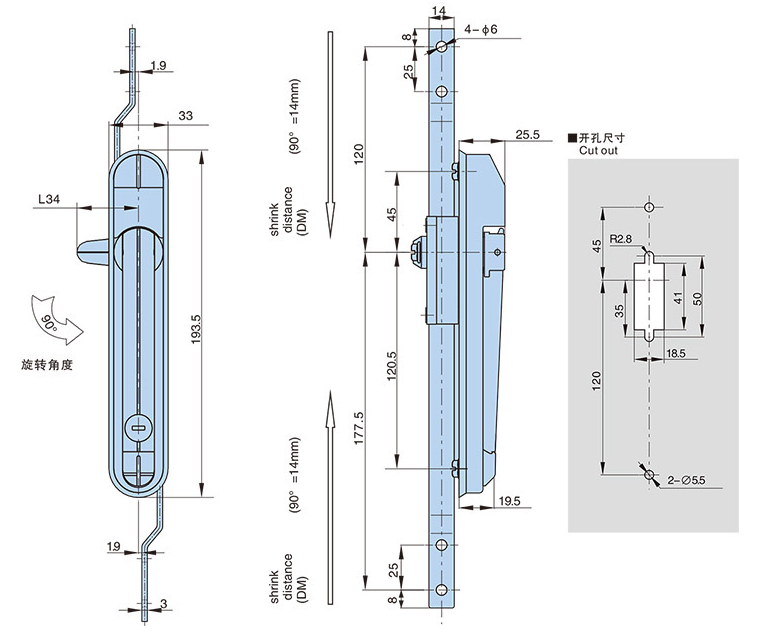

3.Remarks: Lock plate hole 7x7

产品型号及特性 Product Number产品单重(g) Weight装箱数 Lot
镀沙铬 Gray chrome platingKL484-1-1.2563.550
喷无光黑 Black powder coatedKL484-1-1.3
