KL-732

1.主体材质:锌合金锁体、转轴，镀锌安装板、锁片、喷砂镀亮铬齿条2.表面处理:镀沙铬3.适用板厚:1~4mm

PDF下载 2D下载 3D下载

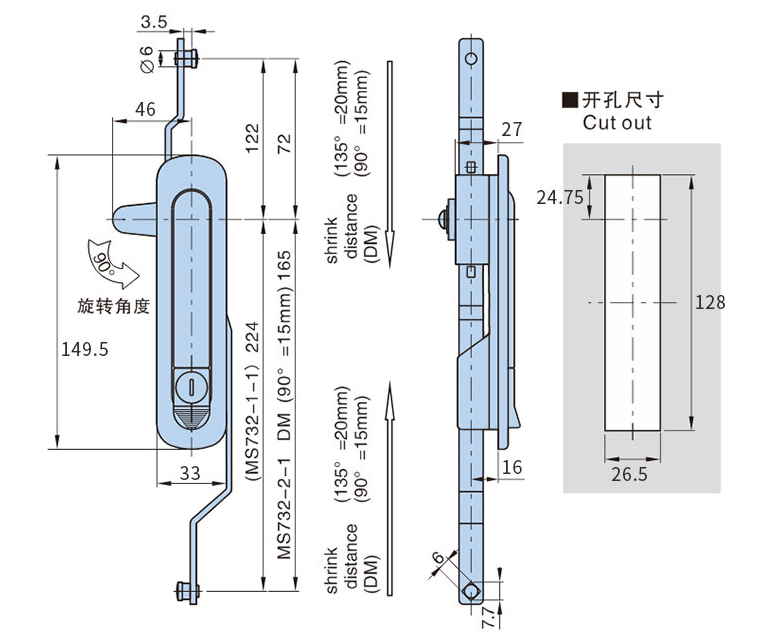

KL732-1-1

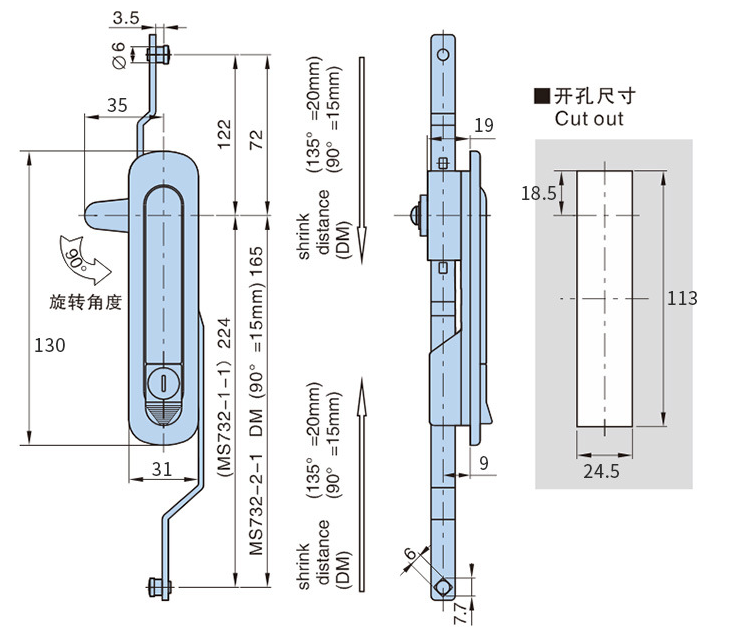

KL732-2-1


1.Main material: Zinc alloy lock body, shaft, galvanized installation plate, lock plate, sandblasted bright chromium plated rack

2.Surface treatment: sandblasted chromium plated

3.Applicable plate thickness: 1-4mm

基本尺寸

Dimensions

产品型号Product Number产品单重(g)Weight装箱数Lot
L1L2L3B1B2B3H1H2
149.5128463326.524.752716KL732-1-1.256250
130113353124.518.5199KL732-2-1.236150
