KL-742

1.主体材质:锌合金锁体，转轴，镀锌安装板、锁片、喷砂镀亮铬齿条2.表面处理:喷沙纹黑3.门板厚度: 1~4MM

PDF下载 2D下载 3D下载

KL742-1-1


KL742-2-1


1.Main material: Zinc alloy lock body, shaft, galvanized installation plate, lock plate, sandblasted bright chrome rack

2.Surface treatment: sandblasted black stripe

3.Door panel thickness: 1-4mm

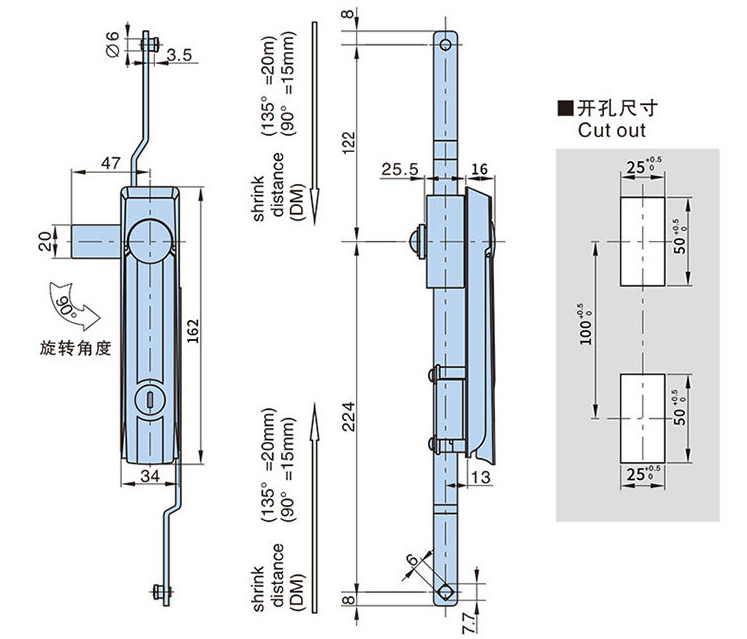

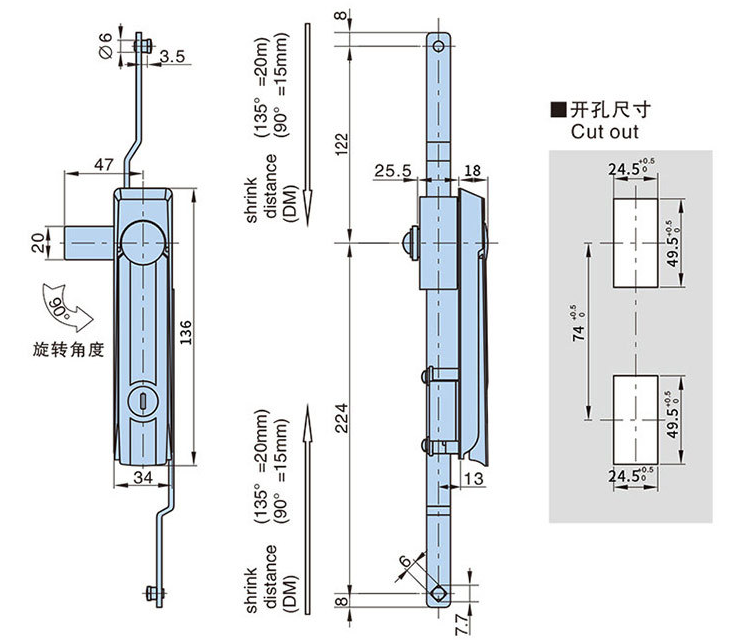

基本尺寸

Dimensions

产品型号Product Number产品单重(g)Weight装箱数Lot
L1L2L3B1H
162100502516KL742-1-163850
1367449.524.518KL742-2-160250
