KL-744

1.材质：锌合金锁体，镀锌压板、锁片2.表面处理：喷沙纹黑3.适用门板厚度：1~4mm4.备注：锁片开孔8×8

PDF下载 2D下载 3D下载

KL744-1-1


KL744-2-1


KL744-3-1


1.Material: Zinc alloy lock body, galvanized pressure plate, lock plate.

2.Surface treatment: sandblasting black pattern.

3.Applicable door panel thickness: 1-4mm.

4.Remarks: Lock plate opening 8 × 8

基本尺寸

Dimensions

产品型号Product Number产品单重(g)Weight装箱数Lot
L1L2L3L4B1B2A

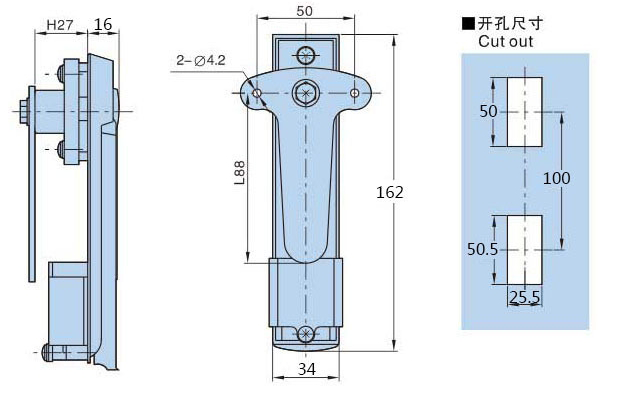

1621005050.53425.516KL744-1-145950

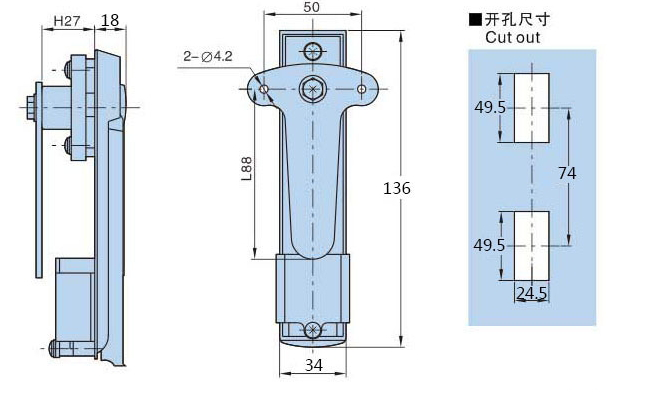

1367449.549.53424.518KL744-2-143050

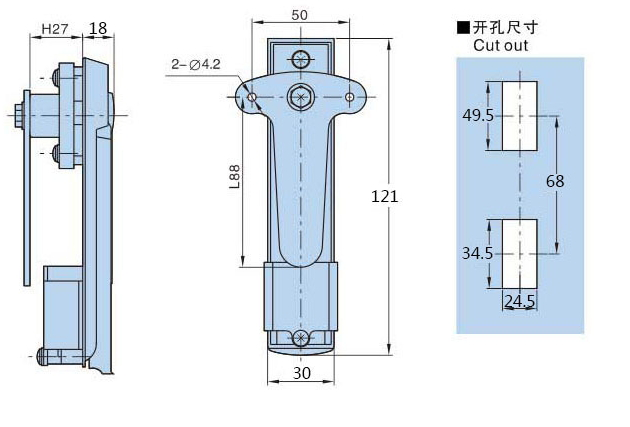

1216849.534.53024.518KL744-3-142050
