KL-761

1.材质：锌合金锁体，转轴，镀锌压板、锁片、镀镍传动条2.表面处理：镀沙铬 ,喷无光黑3.适用门板厚度：1~4mm4.备注：锁片开孔8×8 ，锁壳带商标

PDF下载 2D下载 3D下载

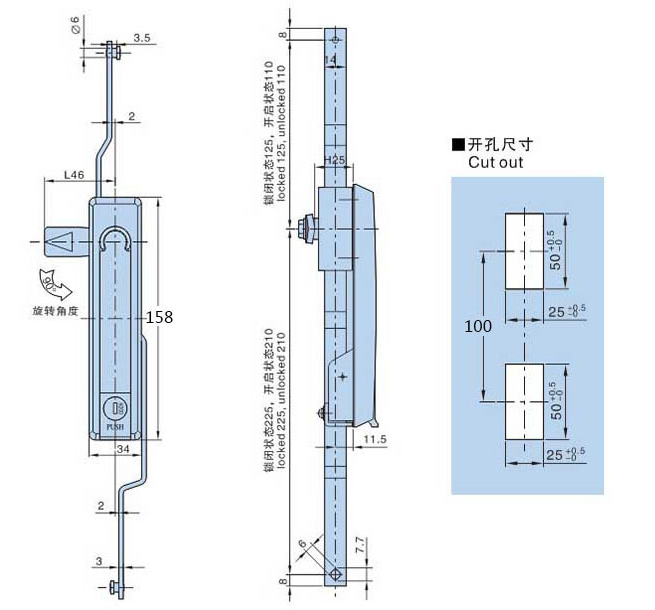

KL761-1-1

KL761-2-1

1.Material: Zinc alloy lock body, shaft, galvanized pressure plate, lock plate, nickel plated transmission strip.

2.Surface treatment: sand chromium plating, spray matte black.

3.Applicable door panel thickness: 1-4mm.

4.Remarks: Lock plate has 8 × 8 holes, lock shell with trademark
