KL-824

1.主体材质:PA锁体，锌合金转轴，镀锌锁片，喷砂镀亮铬齿条2.表面处理:黑色沙纹面3.适用板厚:1~2mm4.备注:锁片开孔8x8

PDF下载 2D下载 3D下载

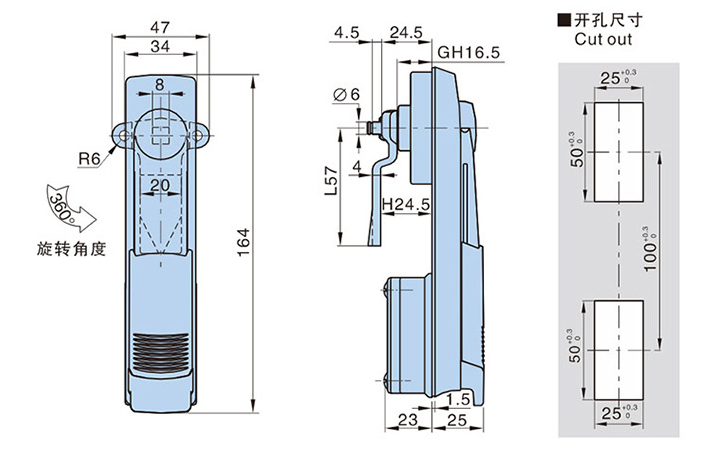

KL824-1-1

KL824-1-2

KL824-1-3

1.Main material: PA lock body, zinc alloy shaft, galvanized lock plate, sandblasted bright chrome rack

2.Surface treatment: black sandblasted surface

3.Applicable plate thickness: 1-2mm

4.Remarks: Lock plate opening 8x8

产品型号及特性 Product Number	单点式门锁(带锁片，不带拉杆)one pointlock(withcam,without rod)	产品单重(g)Weight	装箱数Lot
产品型号及特性 Product Number	转角Rotation angle	产品单重(g)Weight	装箱数Lot
KL824-1-1	360°	286	50
KL824-1-1L	顺时针(CW)90°	286	50
KL824-1-1R	逆时针(ACW)90°	286	50

产品型号及特性 ProductNumber

产品单重(g)

Weight

装箱数

Lot

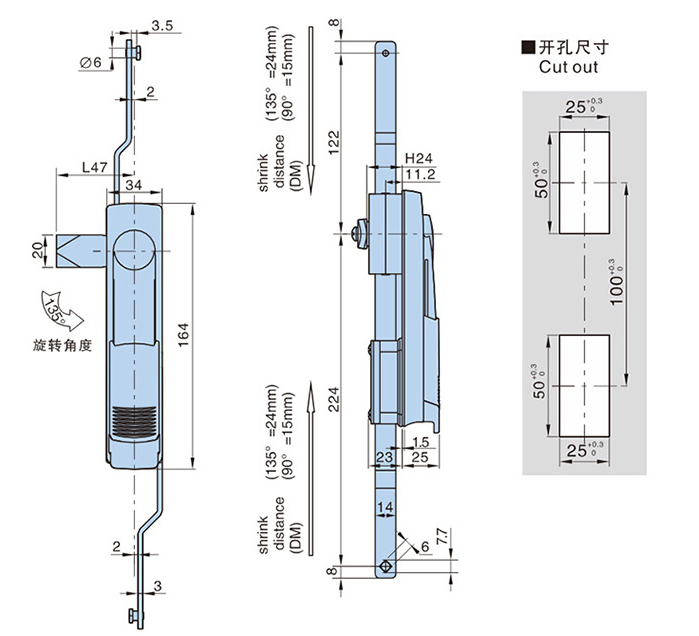

KL824-1-2

双点式门锁(带拉杆，不带锅栓)twopointlock(withrod,withoutcam)

387

KL824-1-3

三点式门锁(带钢栓，带拉杆)threepoit lock(with camand rod)

387
