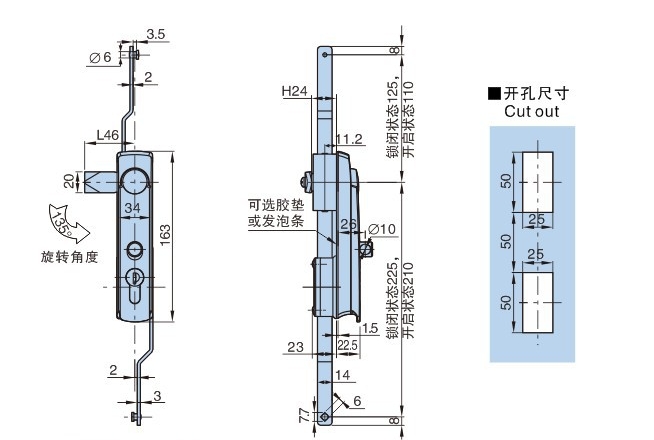

KL-832

1.材质：锌合金锁体，PA66锁壳，铜转轴，镀锌锁片，镀镍传动条2.表面处理：喷沙纹黑3.适用门板厚：1~2mm4.备注：锁片开孔8×8


1.Material: Zinc alloy lock body, PA66 lock shell, copper shaft, galvanized lock plate, nickel plated transmission strip.

2.Surface treatment: sandblasting black.

3.Applicable door panel thickness: 1-2mm.

4.Remarks: Lock plate hole 8 × 8

锁芯类别 insert types	产品型号及特性 Product Number
	双点式门锁(带拉杆，不带钢栓)two point lock(with rod,without cam)						三点式门锁(带钢栓，带拉杆)three point lock(with cam and rod)
	不带挂锁w/o padlock	产品单重(g)Weight	装箱数Lot	带挂锁With padlock	产品单重(g)Weight	装箱数Lot	不带挂锁w/o padlock	产品单重(g)Weight	装箱数Lot	带挂锁With padlock	产品单重(g)Weight	装箱数Lot
K0100(A)	KL832-1-2A	500	50	KL832-1-2A G	525	50	KL832-1-3A	520	50	KL832-1-3A G	555	50
K0133(B)	KL832-1-2B	502	50	KL832-1-2B G	527	50	KL832-1-3B	522	50	KL832-1-3B G	547	50
K7010(C)	KL832-1-2C	530	50	KL832-1-2C G	575	50	KL832-1-3C	550	50	KL832-1-3C G	595	50
K7030(D)	KL832-1-2D	535	50	KL832-1-2D G	560	50	KL832-1-3D	555	50	KL832-1-3D G	580	50
