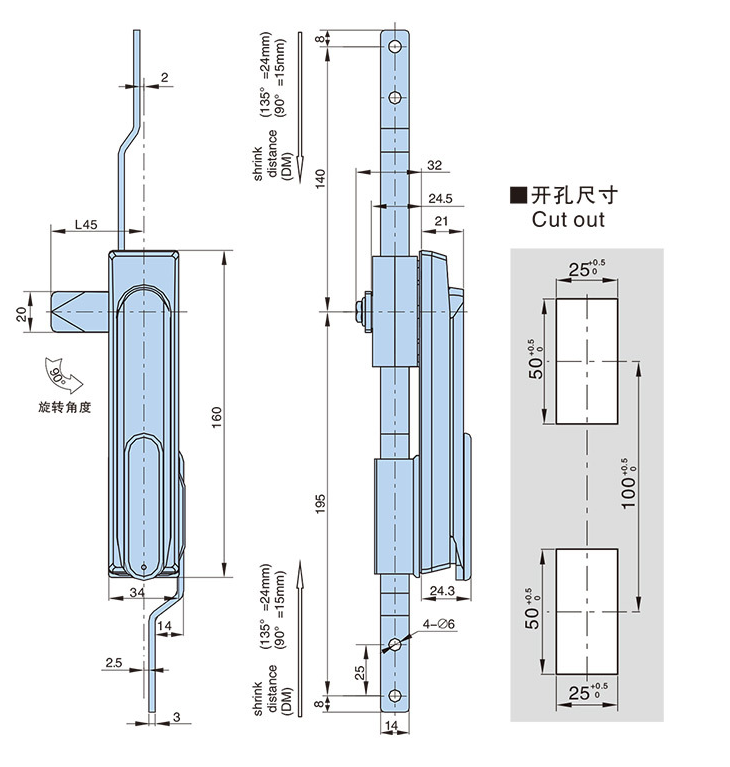

KL-833

1.主体材质: 锌合金锁体，镀锌锁片，镀锌传动条2.表面处理:喷沙纹黑3.备注:锁片开孔7x7

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy lock body, galvanized lock plate, galvanized transmission strip

2.Surface treatment: sandblasting black pattern

3.Remarks: Lock plate opening 7x7

型号 Product no.特性说明Characteristic description产品单重(g)Weight

装箱数

Lot

KL833-1-3不带挂装置w/opadlcok73050
