KL-835

1. 材质：锌合金锁体，镀锌锁片，镀锌传动条2.表面处理：镀亮铬3.适用门板厚：1~2mm

PDF下载 2D下载 3D下载

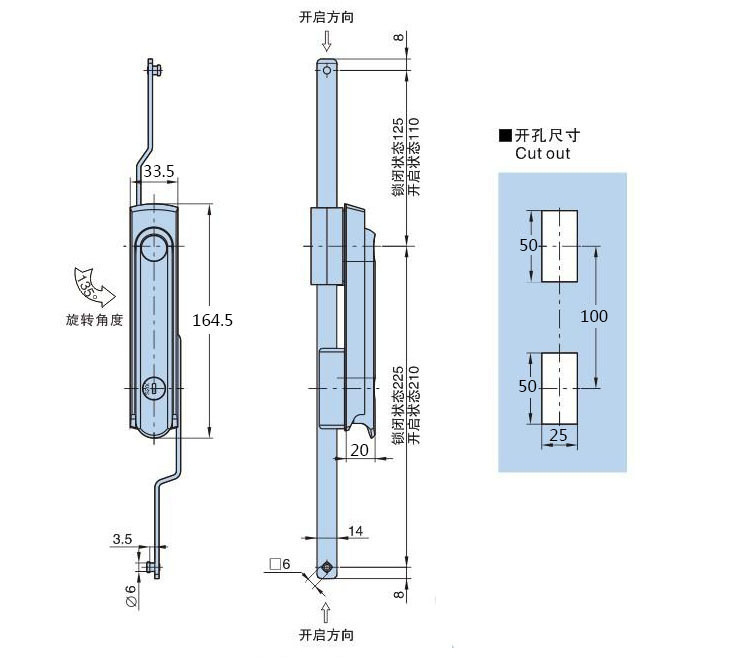

KL835-1-1

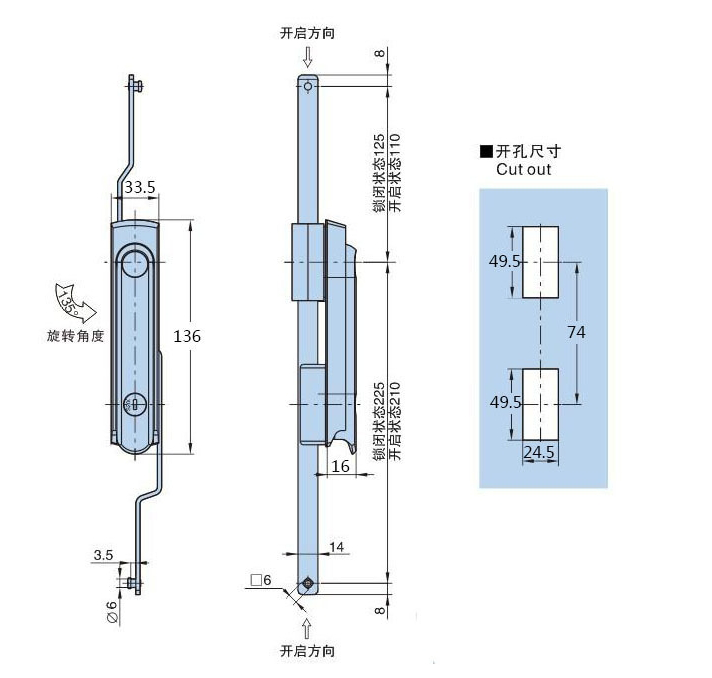

KL835-2-1


1.Material: Zinc alloy lock body, galvanized lock plate, galvanized transmission strip

2.Surface treatment: bright chrome plating

3.Applicable door panel thickness: 1-2mm

型号尺寸
L1L2L3B1B2H

产品单重(g)

Weigh

装箱数

Lot

KL835-1-1164.51005033.52520771.550
KL835-2-11367449.533.524.5
1659050
