KL1002Z

1.主体材质:PA锁壳，锌合金锁芯，齿轮盒，喷砂镀亮铬齿条2.表面处理:喷无光黑3.门板厚度::1~3.5MM

PDF下载 2D下载 3D下载

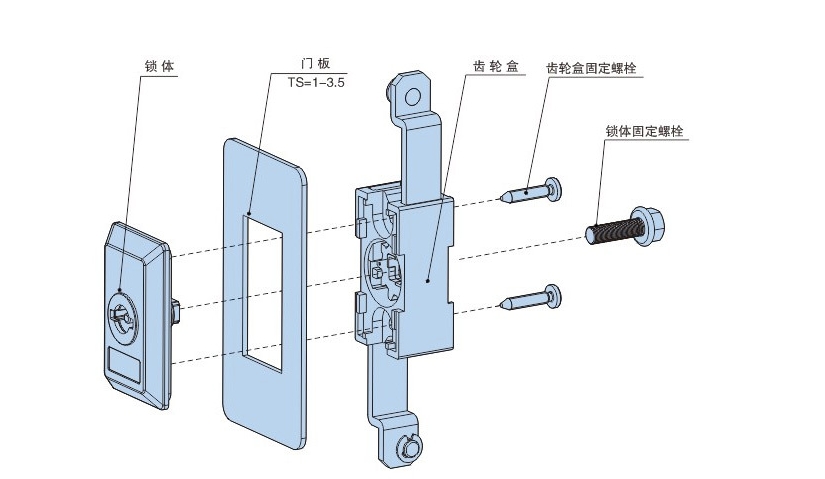

1.Main material: PA lock shell, zinc alloy lock core, gear box, sandblasted and plated with bright chrome rack.

2.Surface treatment: sprayed with matte black.

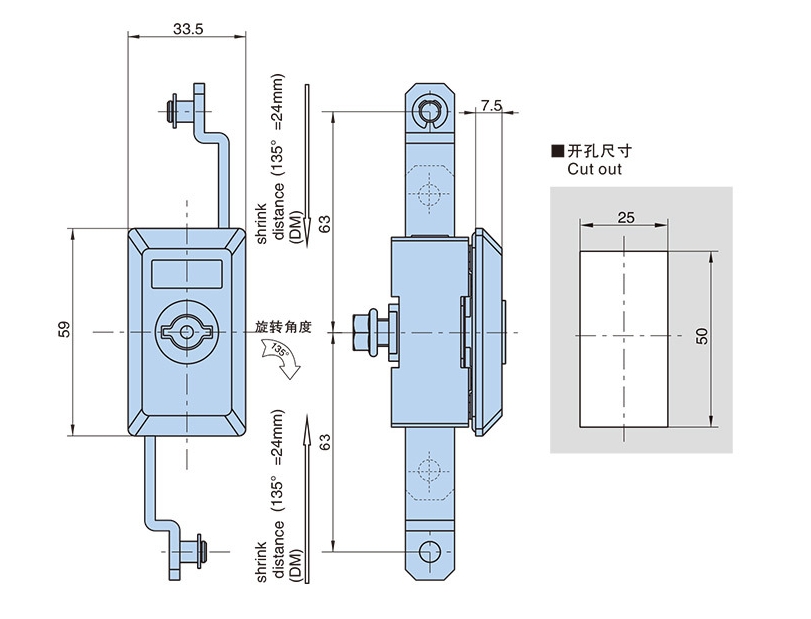

3.Door panel thickness: 1-3.5MM

型号 Product no.产品单重(g) Weight装箱数Lot
KL1002Z-1-1200
100
