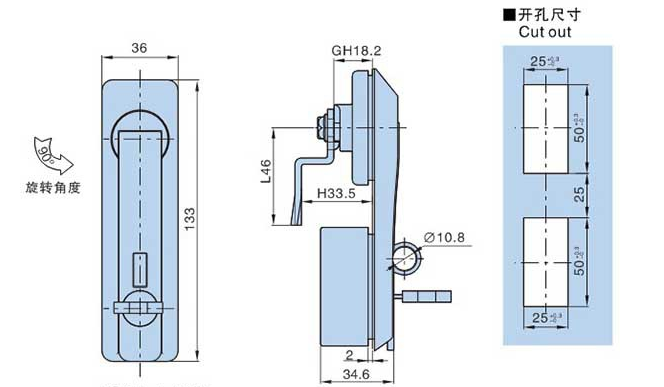

KL463-1-1系列

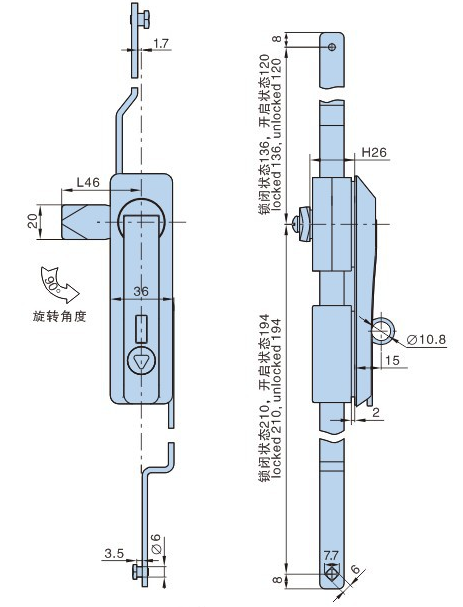

KL463-1-2/3系列
1.Material: Zinc alloy lock shell, handle, galvanized lock plate
2.Applicable door plate thickness: 1.5~2mm
3.Remarks: Lock plate has 8 × 8 holes, which is universal with KL-705 series lock plates
锁芯类别 Insert type | 产品型号及特性 Product Number | ||||||||||||
单点式门锁(带折高15钢栓)One point lock(with 1 5mm bend cam) | 双点式门锁(不带钢栓)Two point lock (w/o cam) | 三点式门锁(带钢栓)Three point lock (with cam) | |||||||||||
镀沙铬Gray chrome plating | 喷无光黑Black powder coated | 产品单重(g)Weight | 装箱数Lot | 镀沙铬Gray chrome plating | 喷无光黑Black powder coated | 产品单重(g)Weight | 装箱数Lot | 镀沙铬Gray chrome plating | 喷无光黑Black powder coated | 产品单重(g)Weight | 装箱数Lot | ||
K333(A) | 不需挂镀w/o padlock | KL463-1-1A.2 | KL463-1-1A.3 | 522 | 50 | KL463-1-2A.2 | KL463-1-2A.3 | 532 | 50 | KL463-1-3A.2 | KL463-1-3A.3 | 522 | 50 |
需挂镀with padlock | KL463-1-1AG.2 | KL463-1-1AG.3 | 542 | 50 | KL463-1-2AG.2 | KL463-1-2AG.3 | 552 | 50 | KL463-1-3AG.2 | KL463-1-3AG.3 | 582 | 50 | |
K7030(B) | 不需挂镀w/o padlock | KL463-1-1B.2 | KL463-1-1B.3 | 552 | 50 | KL463-1-2B.2 | KL463-1-2B.3 | 562 | 50 | KL463-1-3B.2 | KL463-1-3B.3 | 592 | 50 |
需挂镀with padlock | KL463-1-1BG.2 | KL463-1-1BG.3 | 570 | 50 | KL463-1-2BG.2 | KL463-1-2BG.3 | 580 | 50 | KL463-1-3BG.2 | KL463-1-3BG.3 | 610 | 50 |
