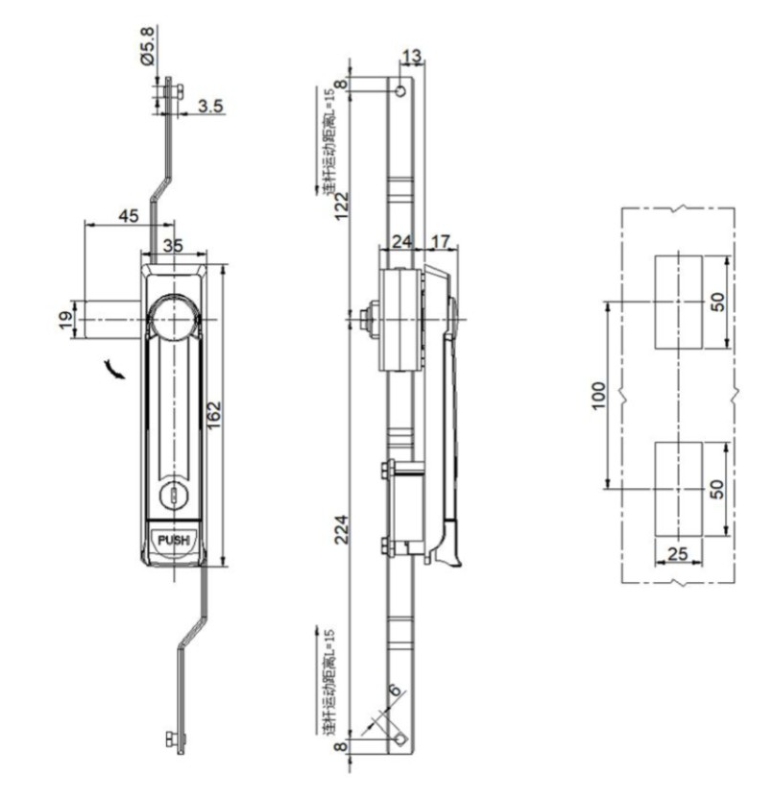

KL-MS741

材质：锌合金主体、镀锌齿条及锁片等表面处理：砂纹黑打开方式：钥匙左旋180°解锁后拔出钥匙，按下方PUSH键使用门板：厚度1-4MM

PDF下载 2D下载 3D下载


Material: Zinc alloy body, galvanized rack and locking plate, etc

Surface treatment: Sand grain black

Opening method: Turn the key left 180 ° to unlock, then remove the key and press the PUSH button below

Using door panels: thickness 1-4mm

产品型号/Product Model产品单重（g)/weight装箱数/PCS
MS741616g
40
