KL-MS-727

1.材料：锌合金锁壳、锁芯、镀锌刚栓2.表面处理：镀亮铬/喷塑黑3.锁片及附件表面处理：镀蓝白锌（可盐雾测试72小时）

PDF下载 2D下载 3D下载


1. Materials: Zinc alloy lock shell, lock core, galvanized steel bolt

2. Surface treatment: Bright chrome plating/spray black

3. Surface treatment of locking plates and accessories: Blue white zinc plating (can be tested with salt spray for 72 hours)

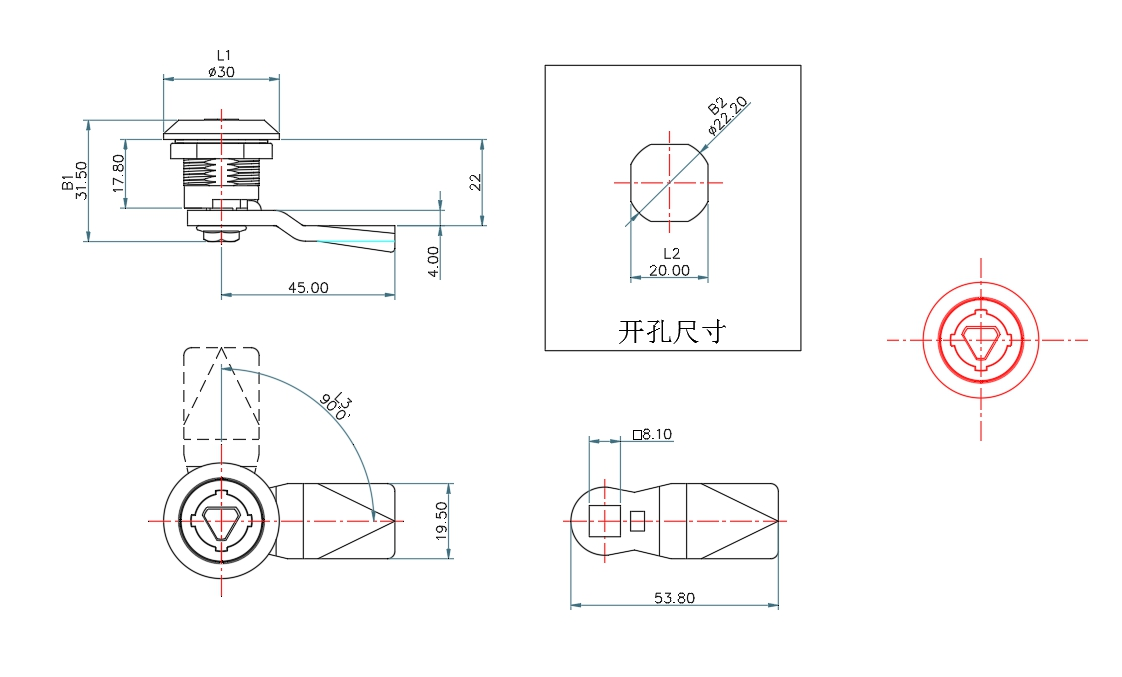

基本尺寸/Basic dimensions

产品品名

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS-72782300
45
20=90°31.5∅22
