KL-MS-816-3

1.材质：锌合金锁体，镀锌钢止动垫，锁片2.表面处理：喷无光黑3.适用门板厚度：压缩式门锁，压缩量约为7MM锁芯旋转210°

PDF下载 2D下载 3D下载


1. Material: Zinc alloy lock body, galvanized steel stop pad, lock plate

2. Surface treatment: Spray matte black

3. Applicable door panel thickness: Compression type door lock, with a compression amount of about 7MM. The lock core rotates 210 °

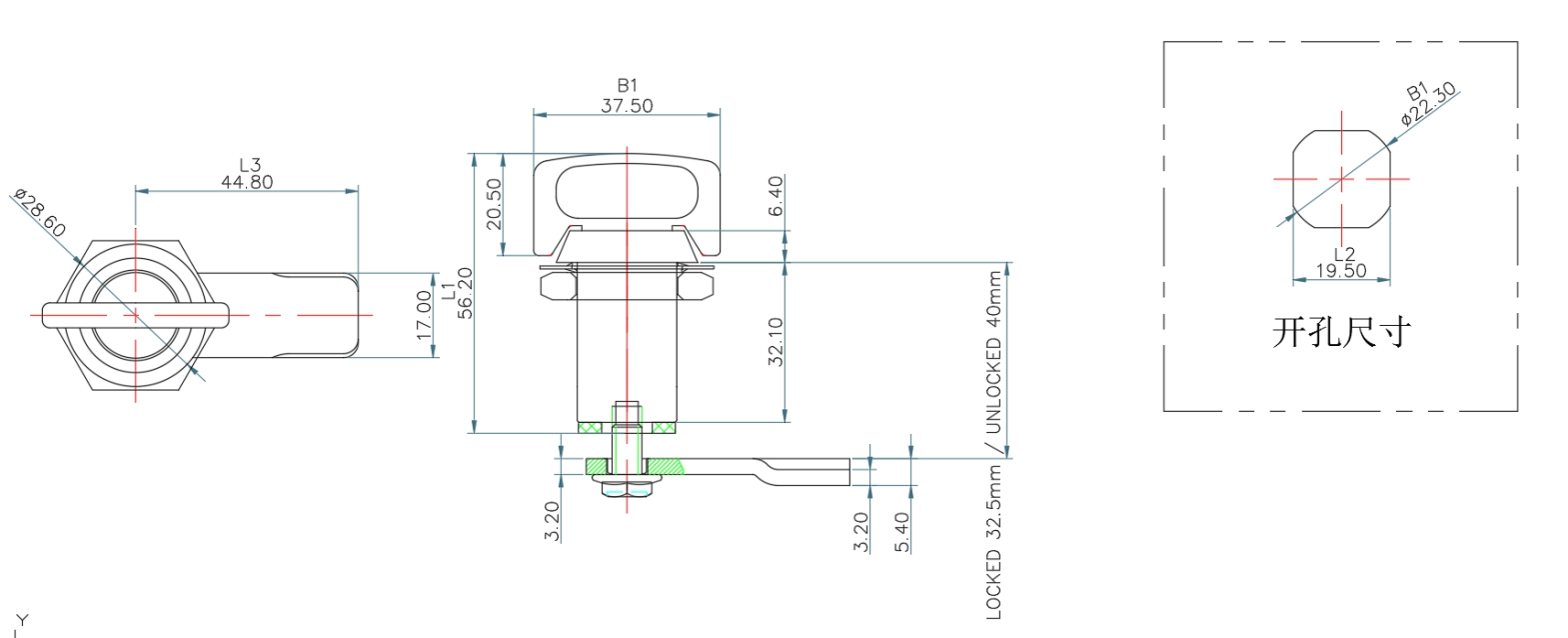

基本尺寸/Basic dimensions

产品品名

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS16-3156
100
56.219.544.837.5∅22.3
