1. Zinc alloy body and galvanized locking plate
2. Surface treatment: Chromium
3. Opening method: Right turn 90 ° (the positioning plate can be adjusted as needed to achieve left turn)
4. Use door panel thickness: thickness ≤ (H-17) MM
5.Key: single dial (i.e. cannot be removed after turning)

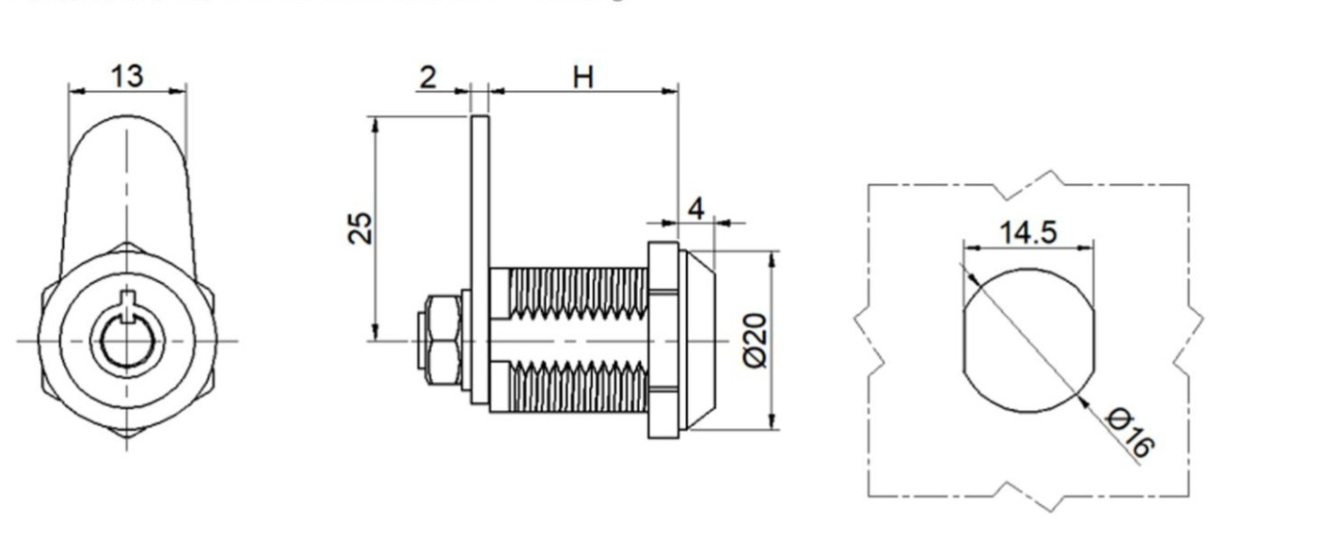

产品尺寸/Basic dimensions | 产品型号/Product Model | 产品单重/Weight | 装箱数/PCS | 备注/note |
H | ||||
15 | M16-15 | 31 | 300 | |
20 | M16-20 | 36 | 300 | |
20 | M16-20(单拨90°) | 36 | 300 | 左旋锁 |
