KL-M-18-16

1.锌合金主体、镀锌锁片2.表面处理:铬3.打开方式:右旋90°(可根据需要调整定位片实现左旋)4.使用门板厚度:厚度≤(H-17)MM钥匙:单拨(即转动后不可拨出)


1. Zinc alloy body and galvanized locking plate

2. Surface treatment: Chromium

3. Opening method: Right turn 90 ° (the positioning plate can be adjusted as needed to achieve left turn)

4. Use door panel thickness: thickness ≤ (H-11) MM

5.Key: single dial (i.e. cannot be removed after turning)

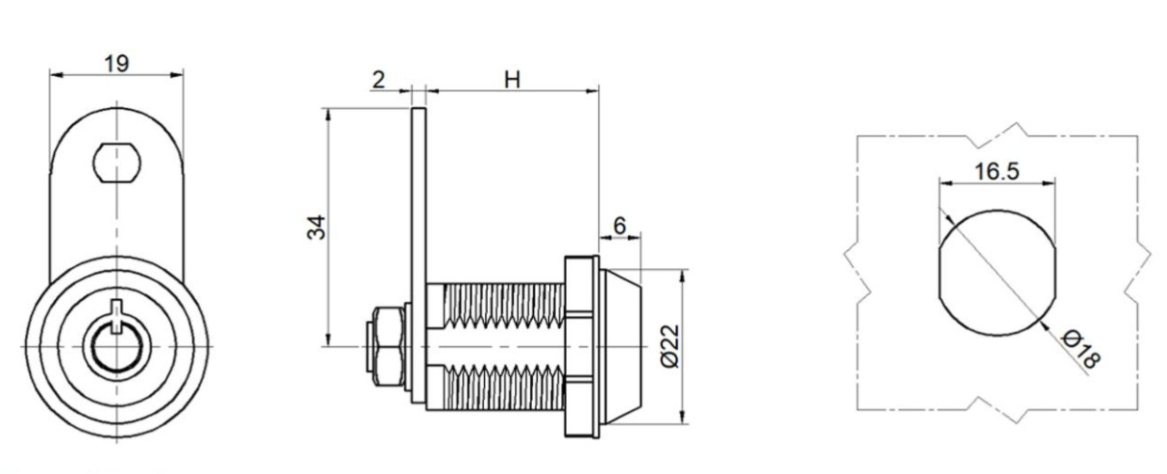

基本尺寸/Basic dimensions产品型号/Product Model产品单重/Weight装箱数/PCS备注/note
H
16M18-1650g300
20M18-2051g300
25M18-2558g300
30M18-3064g300
40M18-4079g300
