1. Zinc alloy body and galvanized locking plate
2. Surface treatment: Chromium
3. Opening method: Right turn 90 ° (the positioning plate can be adjusted as needed to achieve left turn)
4. Use door panel thickness: thickness ≤ (H-11) MM
5.Key: single dial (i.e. cannot be removed after turning)

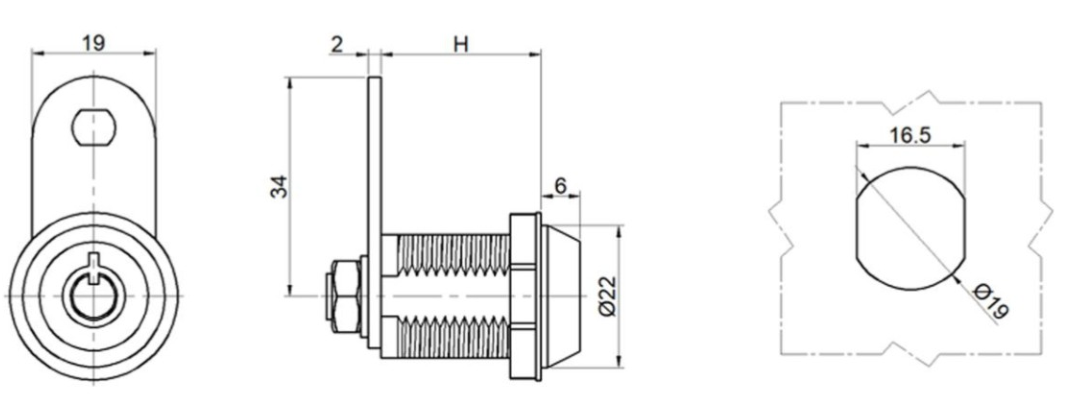

基本尺寸/Basic dimensions | 产品型号/Product Model | 产品单重/Weight | 装箱数/PCS | 备注/note |
H | ||||
17 | M19-17 | 53g | 300 | |
23 | M19-29 | 63g | 300 | |
28 | M19-28 | 70g | 300 | |
17 | M19-17(双拨90) | 53g | 300 | |
17 | M19-17(双拨180°) | 53g | 300 |
