KL-MS-705-3E

1.材质：锌合金主体、铁质锁舌2.表面处理：铬、黑3.打开方式：右旋90°，右旋后钥匙不可拨4.使用门板厚度：≤7MM5.专舌配置：标配或选配（4500/4505/4507）

PDF下载 2D下载 3D下载


1. Material: Zinc alloy body, iron locking tongue

2. Surface treatment: chromium, black

3. Opening method: Turn right 90 °, the key cannot be turned after turning right

4. Use door panel thickness: ≤ 7MM

5. Specialized tongue configuration: standard or optional (4500/4505/4507)

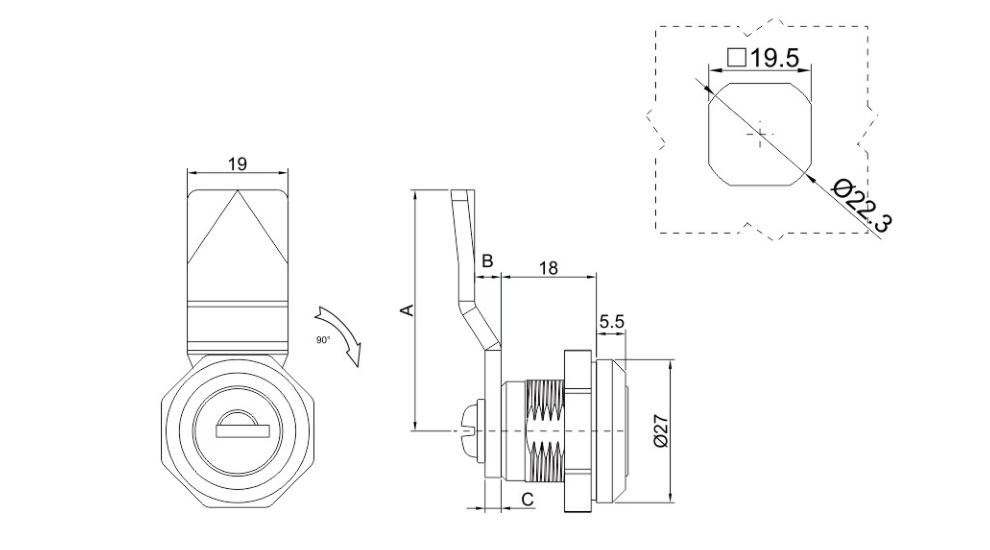

产品尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数

PCS

专舌配置

Tongue Rotation option

ABC
4654MS705-3E58300标配
44.503MS705-3E58300选配4500
45.553MS705-3E58300选配4505
45.573MS705-3E58300选配4507
