KL-403

1.主体材质:锌合金锁体、螺母，包不锈钢面板，镀锌锁片2.适用板厚:1~10mm 3.备注:K8180铜锁芯型号为KL403-2GT

PDF下载 2D下载 3D下载

KL403-1


KL403-2


KL403-2GT


1.Main material: Zinc alloy lock body and nut, coated with stainless steel panel, galvanized lock plate

2.Applicable plate thickness: 1-10mm

3.Remarks: K8180 copper lock core model is KL403-2GT

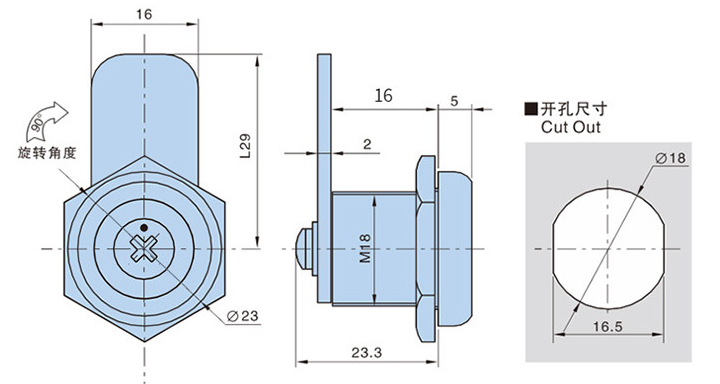

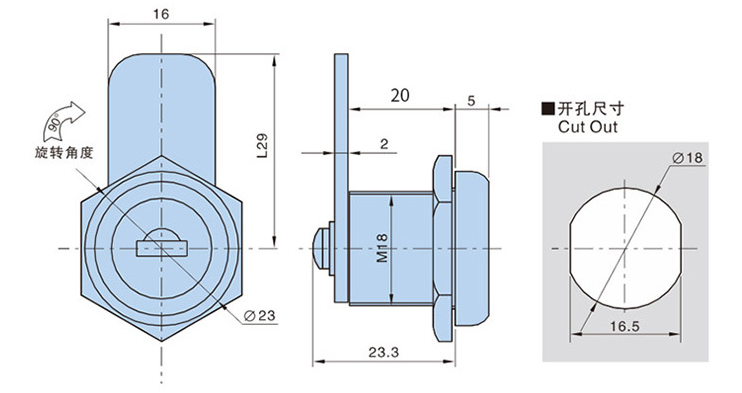

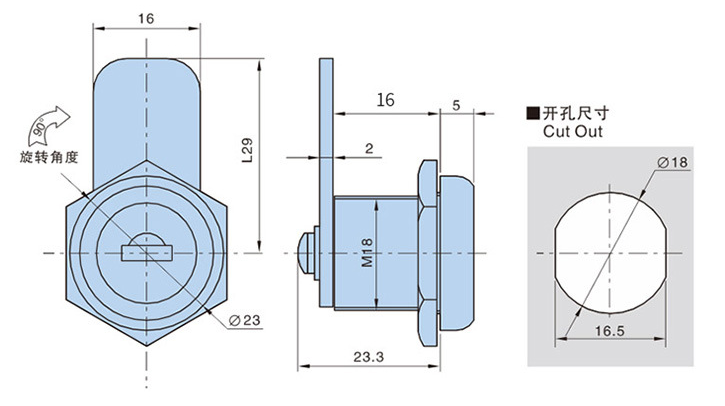

基本尺寸

Dimensions

产品型号及特性 Product Number
H

包不锈钢表面

Stainless steel cover

镀亮铬

Bright chrome plating

K8180(锁芯)

K8180 insert

产品单重(g)Weight装箱数Lot
20KL403-1KL403-1G
50500
16KL403-2
KL403-2GT43500
