KL-409

1.主体材质:锌合金锁体，镀锌锁片2.表面颜色:镀亮铬3.门板厚度:1~6mm

PDF下载 2D下载 3D下载

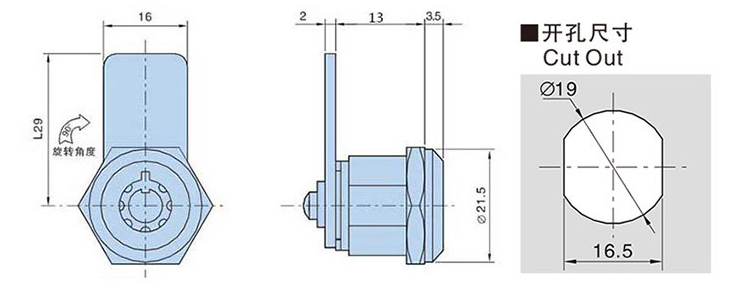

KL409-1

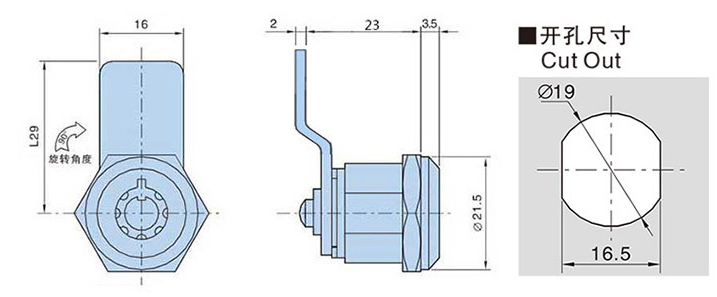

KL409-2


1.Main material: Zinc alloy lock body, galvanized lock plate

2.Surface color: Bright chrome plating

3.Door panel thickness: 1-6mm

基本尺寸Dimensions产品型号Product Number产品单重(g)Weight装箱数Lot
H
23KL409-170
250
13KL409-211.5250
