KL-704

1.主体材质:锌合金锁体，螺母、镀亮铬钢锁芯2.表面颜色:镀亮铬3.适用板厚:1~5mm

PDF下载 2D下载 3D下载

KL704-1


KL704-2


KL704-4


KL704-5


1.Main material: Zinc alloy lock body, nut, bright chrome plated steel lock core.

2.Surface color: bright chrome plated.

3.Applicable plate thickness: 1-5mm

基本尺寸Dimensions产品型号及特性 Product Number
L1L2一字锁芯double bit insert三角锁芯triangular insert四方芯square insert装箱数Lot

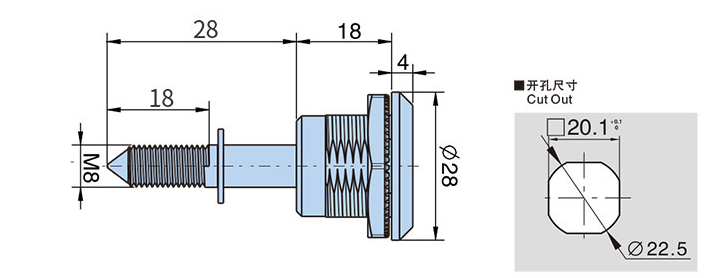

2818KL704-1KL704-3-1KL704-6-1400
28.519.5KL704-2KL704-3-2KL704-6-2400

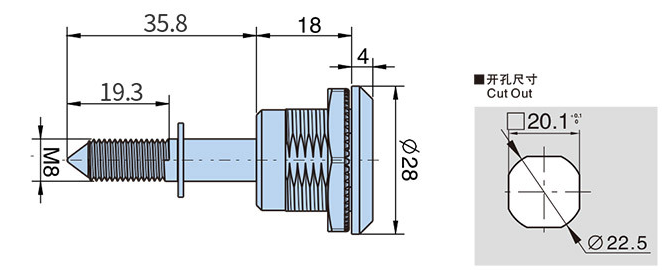

35.819.3KL704-4KL704-3-4KL704-6-4400

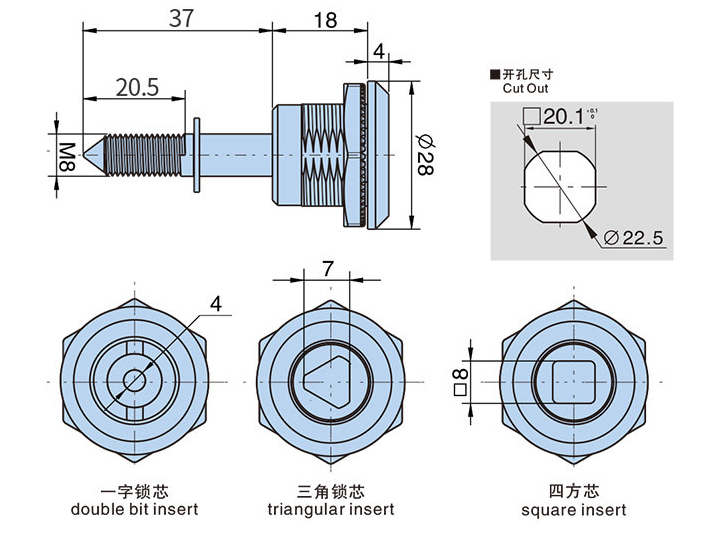

3720.5KL704-5KL704-3-5KL704-6-5400
