KL705-4

1.材质：锌合金锁体，镀锌螺母、锁片 2.适用门板厚度：1~5mm 3.表面处理：镀亮铬

PDF下载 2D下载 3D下载

KL705-4-1                            KL705-4-2                          KL705-4-3


1.Material: Zinc alloy lock body, galvanized nut, lock plate

2.Applicable door panel thickness: 1-5mm

3.Surface treatment: Bright chrome plating

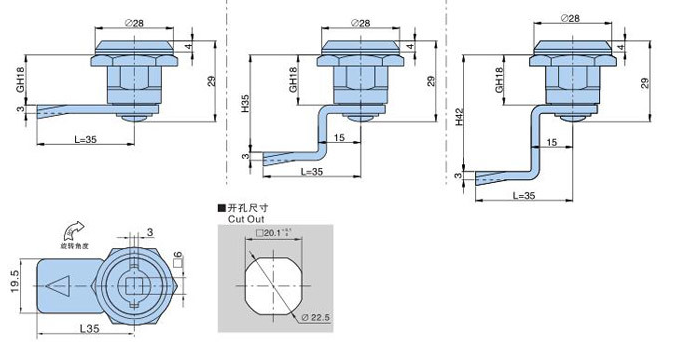

基本尺寸Dimensions产品型号Product no.产品单重(g)Weight装箱数Lot
H
18KL705-4-146.5300
35
KL705-4-275300
42KL705-4-395300
