1.Material: Zinc alloy lock body, galvanized nut, lock plate
2.Surface treatment: gray green, matte black
3.Applicable door panel thickness: 1-5mm

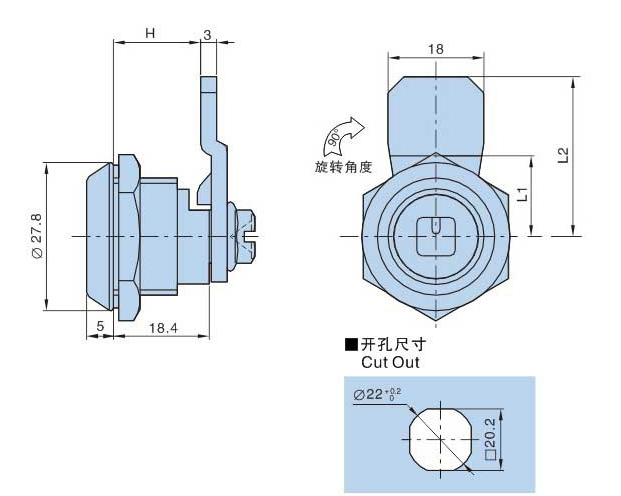

基本尺寸Dimensions | 产品型号及特性 Product Number | ||||||||||||||
锁片类别 cam tpyes | H | L1 | L2 | 灰绿色Sage green | 无光黑Black powder coated | ||||||||||
四方芯 Square insert | 产品单重(g) Weight | 装箱数 Lot | 一字芯 Double bit insert | 产品单重(g) Weight | 装箱数 Lot | 四方芯 Square insert | 产品单重(g) Weight | 装箱数 Lot | 一字芯 Double bit insert | 产品单重(g) Weight | 装箱数 Lot | ||||
祈高2片 Height=2 | 16.4 | 15 | 30 | KL705-5-4.9 | 112 | 300 | KL705-5-2.9 | 115 | 300 | KL705-5-4.3 | 112 | 300 | KL705-5-2.3 | 115 | 300 |
祈高32.5片 Height=32.5 | 51 | 22.5 | 34 | KL705-5-3.9 | 120 | 300 | KL705-5-1.9 | 125 | 300 | KL705-5-3.3 | 120 | 300 | KL705-5-1.3 | 125 | 300 |
