电子样本
BOOK

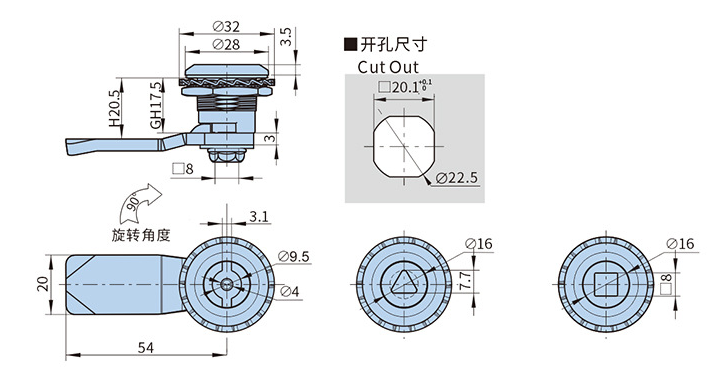

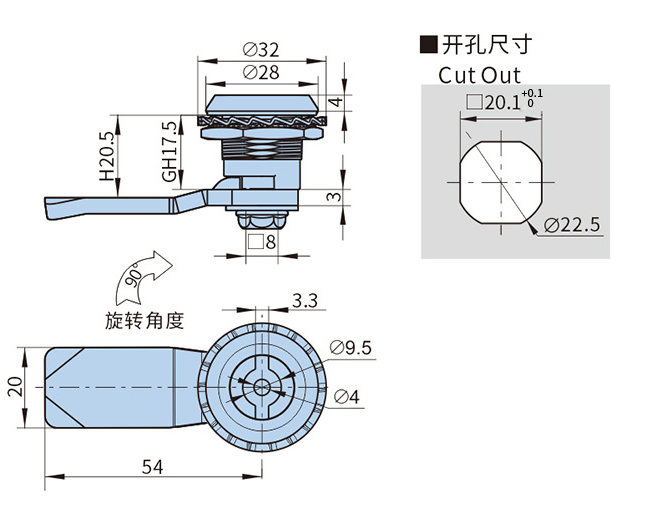

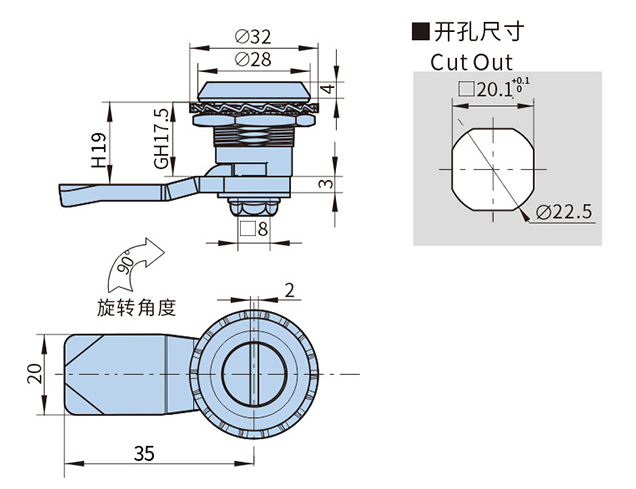

KL705-1-1
KL705-1-2/-3
KL705-2-1/-2/-3

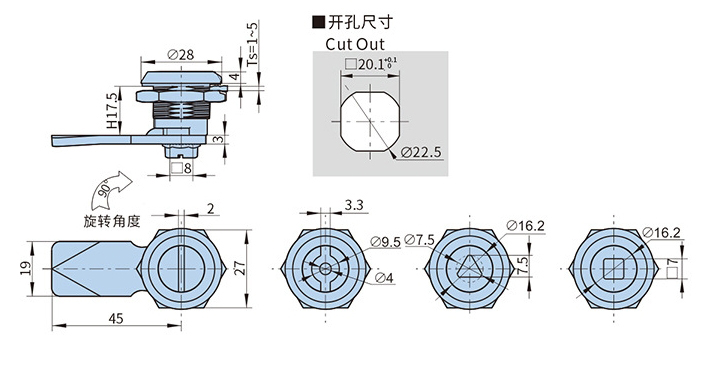

KL705-2S-1/-2/-3/-4
1.Main material: Zinc alloy or stainless steel lock body, nut, steel core lock plate.
2.Surface treatment: stainless steel, plated with bright chromium.
3.Applicable plate thickness: 1-5mm.
4.Remarks: The stainless steel series lock core comes in two types: spring pad type and spring type
| 产品型号Product no. | 表面处理Finish | 锁芯形状 insert | 产品单重(g)Weight | 装箱数Lot |
| KL705-1-1.1 | 镀亮铬 Chrome plating | 直槽芯slot insert | 80 | 500 |
| KL705-1-2.1 | 一字芯double bit insert | 76 | 500 | |
| KL705-1-3.1 | S型芯 S insert | 72 | 500 | |
| KL705-2-1.1 | 镀亮铬 Chrome plating | 一字芯double bit insert | 74.5 | 500 |
| KL705-2-2.1 | 三角芯triangular insert | 77 | 500 | |
| KL705-2-3.1 | 四方芯square insert | 74.5 | 500 | |
| KL705-2S-1 | 不锈钢 Stainless steel | 直槽芯slot insert | 86 | 500 |
| KL705-2S-2 | 一字芯double bit insert | 80.5 | 500 | |
| KL705-2S-3 | 三角芯triangular insert | 78 | 500 | |
| KL705-2S-4 | 四方芯square insert | 80.5 | 500 |
