KL706-2 KL706-3

1.主体材质:KL706-2为锌合金锁体,螺母,钥匙,镀锌锁片,KL706-3为锌合金锁体、镀锌钢刚栓、螺母2.表面处理:喷砂镀铬、镀亮铬3.适用板厚:1~5mm 4.备注:锁片开孔8x8

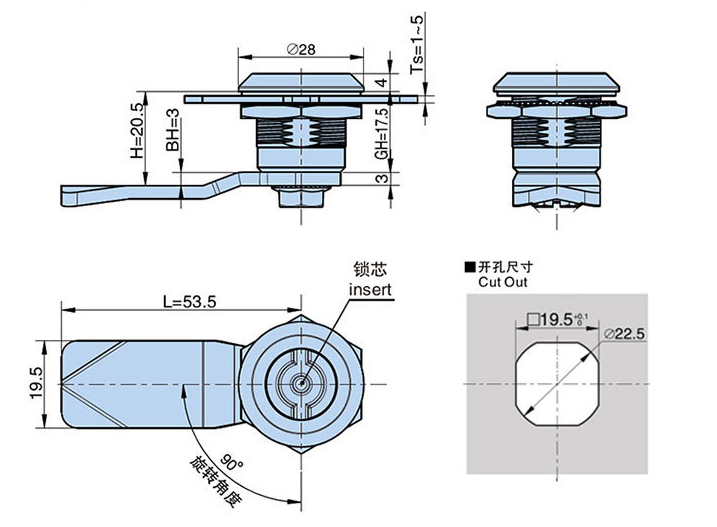

KL706-2

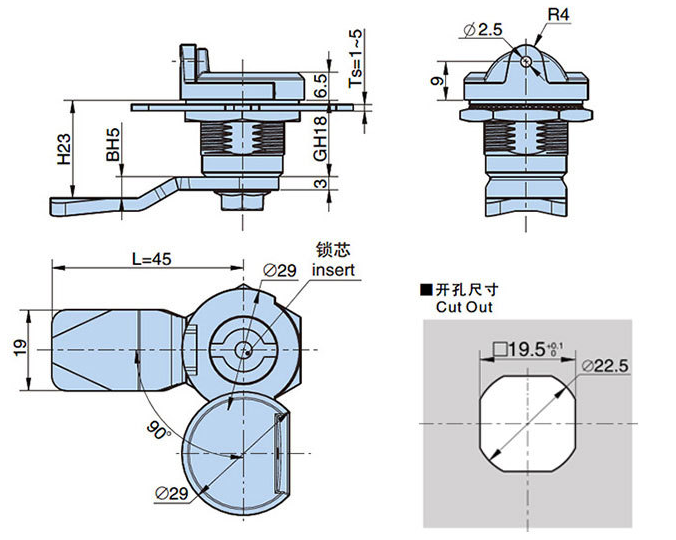

KL706-3


1.Main material: KL706-2 is a zinc alloy lock body, nut, key, and galvanized lock plate. KL706-3 is a zinc alloy lock body, galvanized steel bolt, and nut.

2.Surface treatment: sandblasting chrome plating, bright chrome plating.

3.Applicable plate thickness: 1-5mm.

4.Remarks: Lock plate opening 8x8

锁芯类别

insert types

型号 Product no.

一字芯 D=4

KL706-3-1

三角形 8mm

KL706-3-2

三角形7mm

KL706-3-3

四方8x8mm

KL706-3-4

四方7x7mm

KL706-3-5

一字槽

KL706-3-6

产品单重 Weight





装箱数 Lot
