KL-715

1.主体材质: 锌合金锁壳、锁芯，镀锌钢螺杆、螺栓2.表面处理:喷无光黑镀亮铬3.门板厚度:1~8MM

PDF下载 2D下载 3D下载

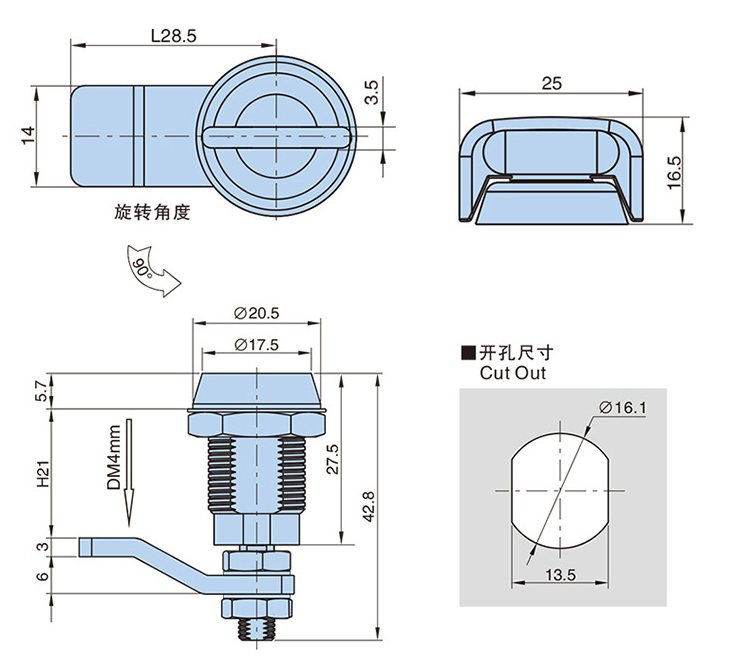

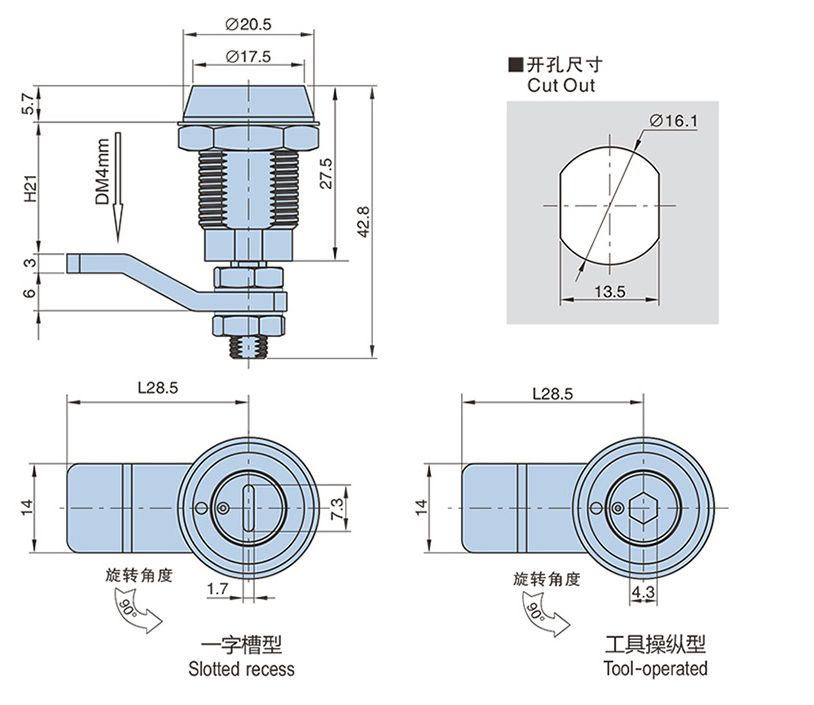

KL715-1-1 . KL715-1-2


KL715-1-3


1.Main material: zinc alloy lock shell, lock core, galvanized steel screw, bolt.

2.Surface treatment: spray matte black with bright chrome plating.

3.Door panel thickness: 1-8MM

型号 Product no.锁芯形状(Insert)产品单重(g)Weight装箱数Lot
KL715-1-1一字槽型 Slotted recess50500
KL715-1-2工具操纵型 Tool-operated50500
KL715-1-3把手型 Knob style56200
