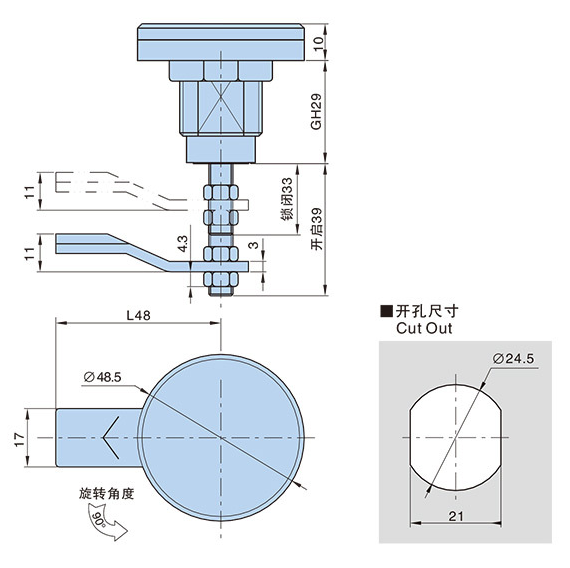

KL-814

1.材质：锌合金锁体，螺母，钥匙，镀锌锁片2.适用门板厚度：1~4mm 3.备注：压缩式门锁，压缩量为6mm,锁芯旋转180°

PDF下载 2D下载 3D下载


1.Material: Zinc alloy lock body, nut, key, galvanized lock plate

2.Applicable door panel thickness: 1-4mm

3.Remarks: Compression type door lock, compression amount of 6mm, lock core rotates 180 °

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-814183100
