KL-W400

1.材质：锌合金锁体，螺母，镀锌锁片、铜钥匙2.表面处理：镀亮铬3.适用门板厚度：1~10mm

PDF下载 2D下载 3D下载


1.Material: Zinc alloy lock body, nut, galvanized lock plate, copper key.

2.Surface treatment: bright chrome plating.

3.Applicable door panel thickness: 1-10mm

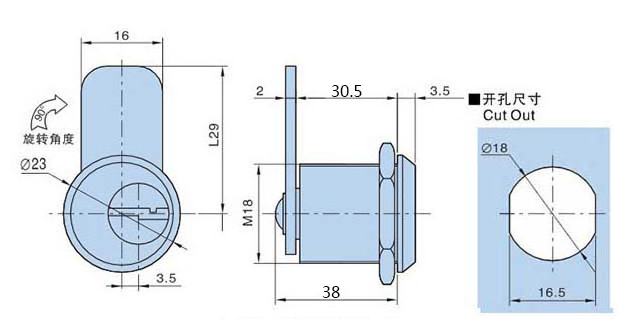

基本尺寸Dimensions产品型号Product Number产品单重(g)Weight装箱数Lot
HH1
30.538KL-W400-172500
20.528KL-W400-265500
16.524KL-W400-360500
