KL-MS-751

1.材质:锌合金锁体、转轴,镀锌压板、锁片2.表面处理:镀沙铬,无光黑3.使用门板厚度:1-6MM4.锁片开口:锁片开口□8×8


1. Material: Zinc alloy lock body, shaft, galvanized pressure plate, lock plate

2. Surface treatment: Sanded chrome plating, matte black

3. Use door panel thickness: 1-6mm

4. Lock opening: Lock opening □ 8 × 8

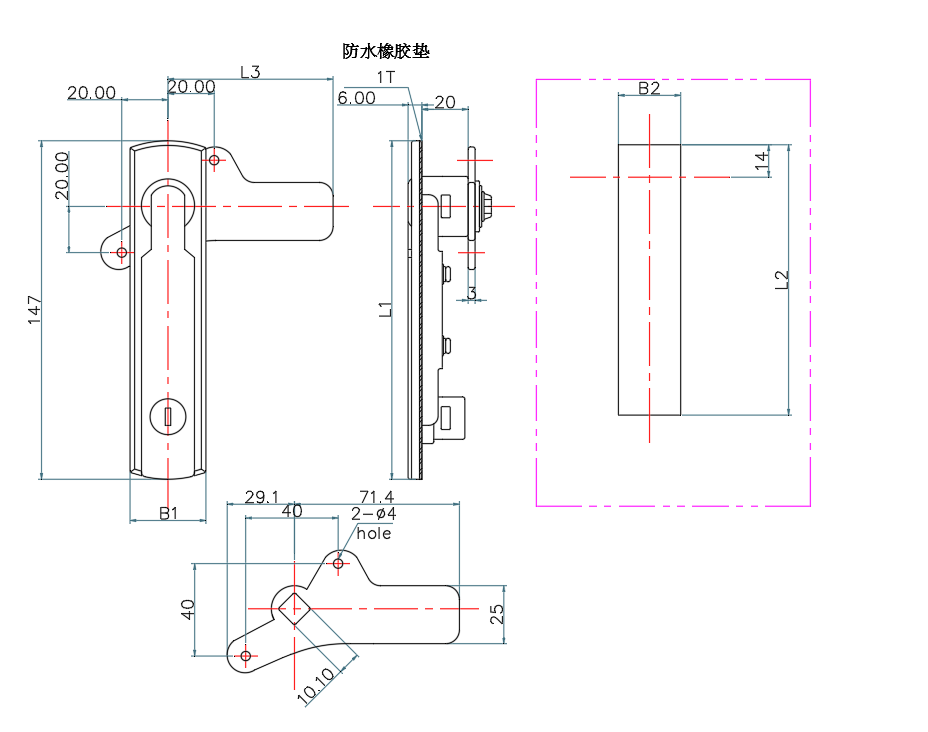

基本尺寸/Basic dimensions
产品型号/Product model

产品单重(克)

Product weight per unit

装箱数
L1L2L3B1B2
147117723327KL-AB751-1-1.2
100
1211096653024KL-AB751-5-1.2
100
88636528.524KL-AB751-3-1.2
80
