MS-606-1

1.材质：锌合金2.表面处理：镀铬、喷塑无光黑3.适用门板厚度：1-4MM4.默认钥匙：K606

PDF下载 2D下载 3D下载


1. Material: Zinc alloy

2. Surface treatment: chrome plating, spray painted matte black

3. Applicable door panel thickness: 1-4MM

4. Default key: K606

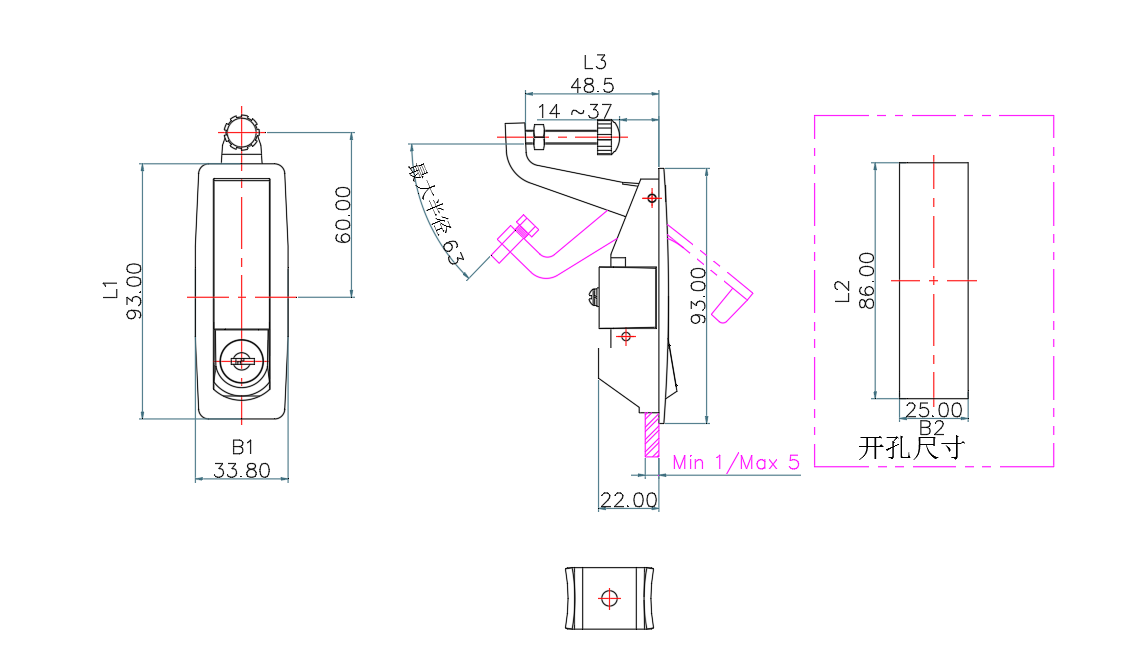

基本尺寸/Basic dimensions产品型号/Product moedel

产品单重（克）

Product weight per unit

装箱数
L1L2L3B1B2KL-MS-606-1
100
938648.533.825
