KL-AB-301

1.锌合金锁体、转轴、镀锌锁片、压板2.表面处理：镀哑光铬、喷纳米哑光漆、黑漆3.适用门板厚度：＜3MM

PDF下载 2D下载 3D下载


1. Zinc alloy lock body, shaft, galvanized lock plate, pressure plate

2. Surface treatment: matte chrome plating, nano matte paint spraying, black paint

3. Applicable door panel thickness: ＜ 3MM

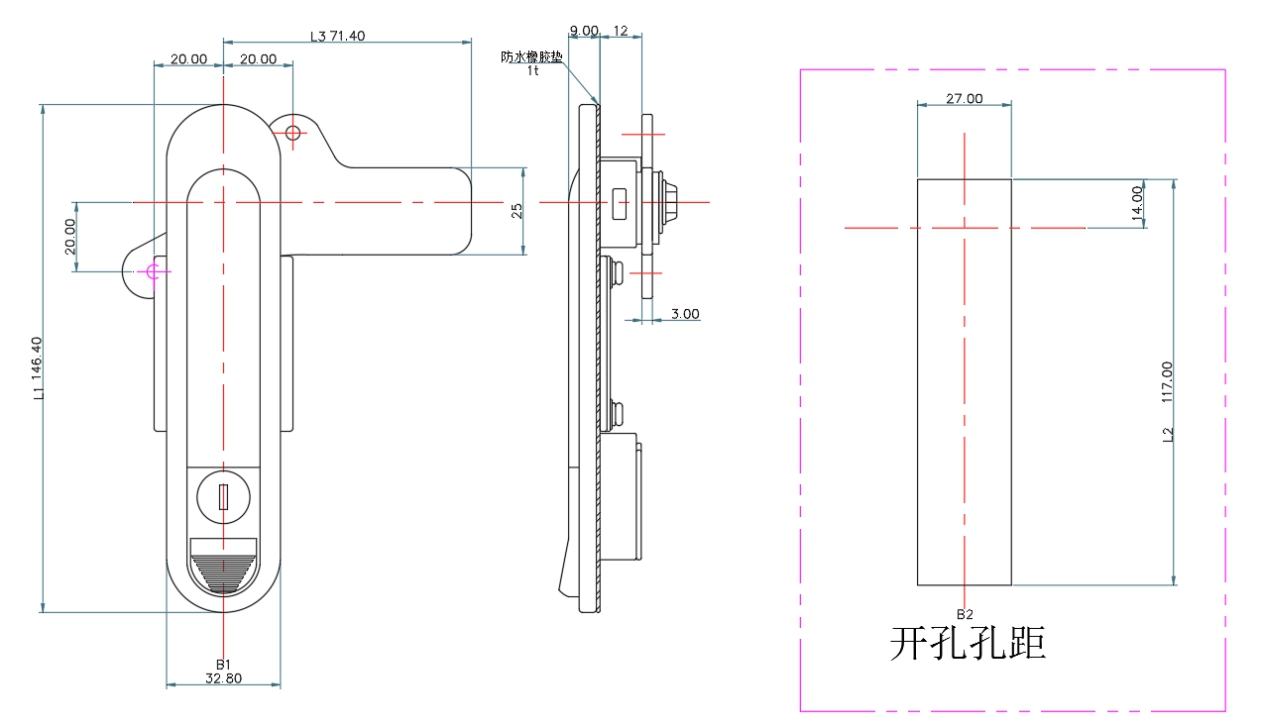

基本尺寸/Basic dimensions
产品型号/Product model

产品单重（克）

Product weight per unit

装箱数
L1L2L3B1B2KL-AB301278
100
146.411771.432.827
