KL-AB-302

1.材质：锌合金主体、镀锌锁片2.表面处理：沙铬、喷漆纳米哑光漆、无光黑3.打开方式：钥匙右旋到位后，下拉下部滑键，把手弹起后右旋90°（可根据需要调整定位片实现左开门左旋）4.适用门板：≤3

PDF下载 2D下载 3D下载


1. Material: Zinc alloy body, galvanized locking plate

2. Surface treatment: sand chromium, spray painted nano matte paint, matte black

3. Opening method: After turning the key to the right, pull down the lower sliding key, and when the handle pops up, turn it 90 ° to the right (the positioning piece can be adjusted as needed to achieve left door opening and left rotation)

4. Applicable door panels: ≤ 3

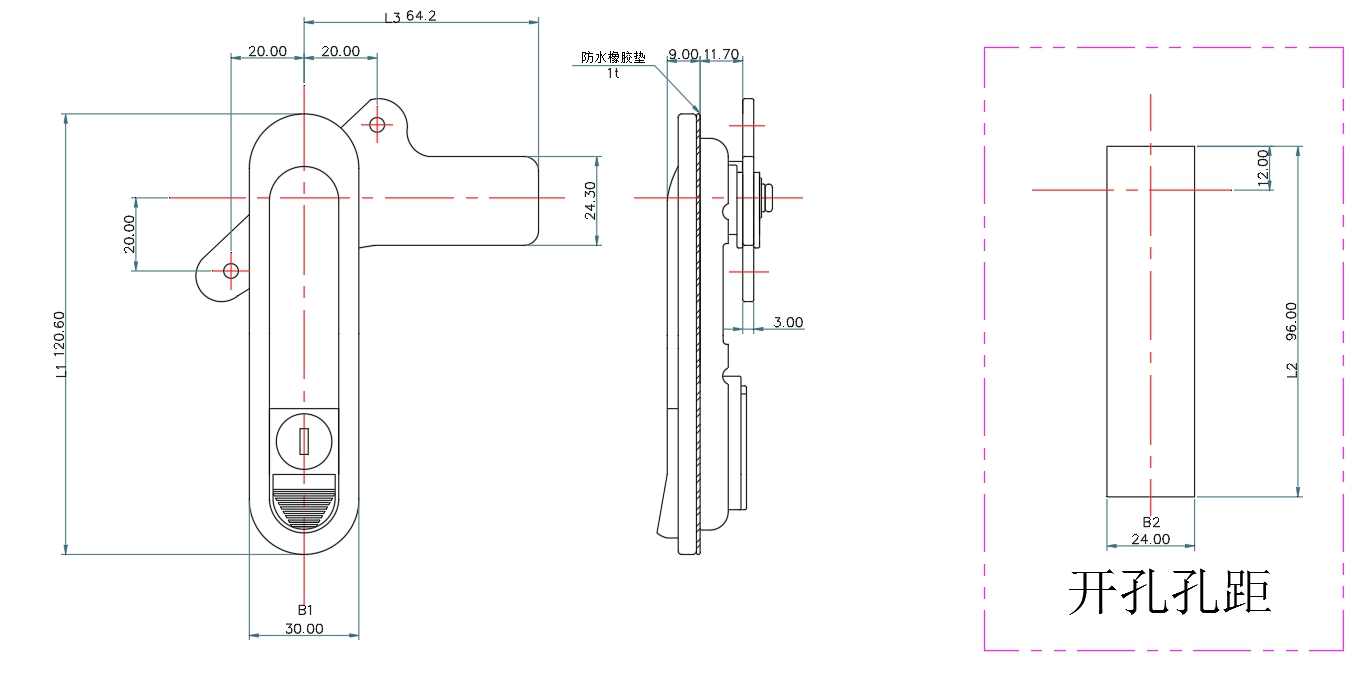

基本尺寸/Basic dimensions产品型号/Product model

产品单重（克）

Product weight per unit

装箱数
L1L2L3B1B2
1209664.23024KL-AB-302191
100
1209664.23024KL-AB-302-219290
