KL-102

1.材质:锌合金主体、镀锌锁片2.表面处理:沙铬、喷漆纳米哑光漆、无光黑3.打开方式:钥匙右旋到位后,下拉下部滑键,把手弹起后右旋90°(可根据需要调整定位片实现左开门左旋)4.适用门板:≤4


1. Material: Zinc alloy body, galvanized locking plate

2. Surface treatment: sand chromium, spray painted nano matte paint, matte black

3. Opening method: After turning the key to the right, pull down the lower sliding key, and when the handle pops up, turn it 90 ° to the right (the positioning piece can be adjusted as needed to achieve left door opening and left rotation)

4. Applicable door panels: ≤ 4

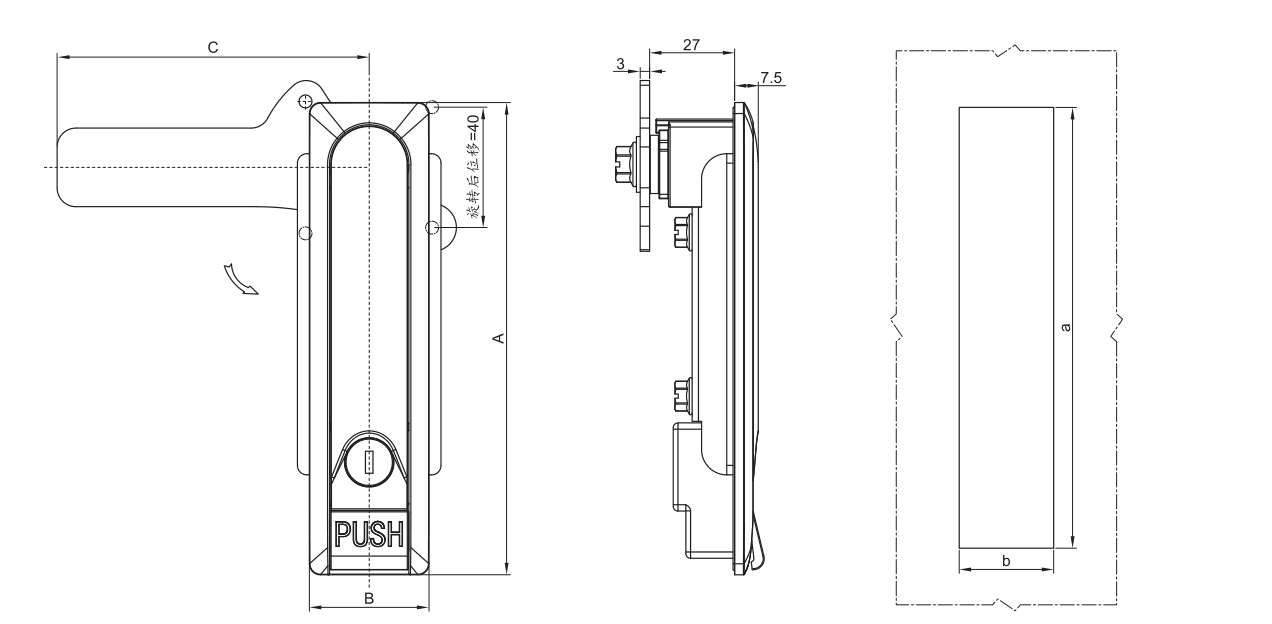

基本尺寸/Basic dimensions
产品型号/Product model

产品单重(克)

Product weight per unit

装箱数
ABCab
1503810014030KL-AB102454g50
15038
10014030KL-AB102-G461g
1103472102.527KL-AB103290g80
11034100102.527KL-AB103290g80
