KL-AB-4022

1.锌合金主体、镀锌锁片2.表面处理:镀哑光3.打开方式:钥匙右旋180°,拉起把手后右旋90°(可根据需要调整定位片实现左右开门)4.适用门板厚度:厚度≤4


1. Zinc alloy body and galvanized locking plate

2. Surface treatment: matte plated

3. Opening method: Turn the key 180 ° to the right, pull up the handle and turn it 90 ° to the right (the positioning plate can be adjusted as needed to open the door left and right)

4. Applicable door panel thickness: Thickness ≤ 4

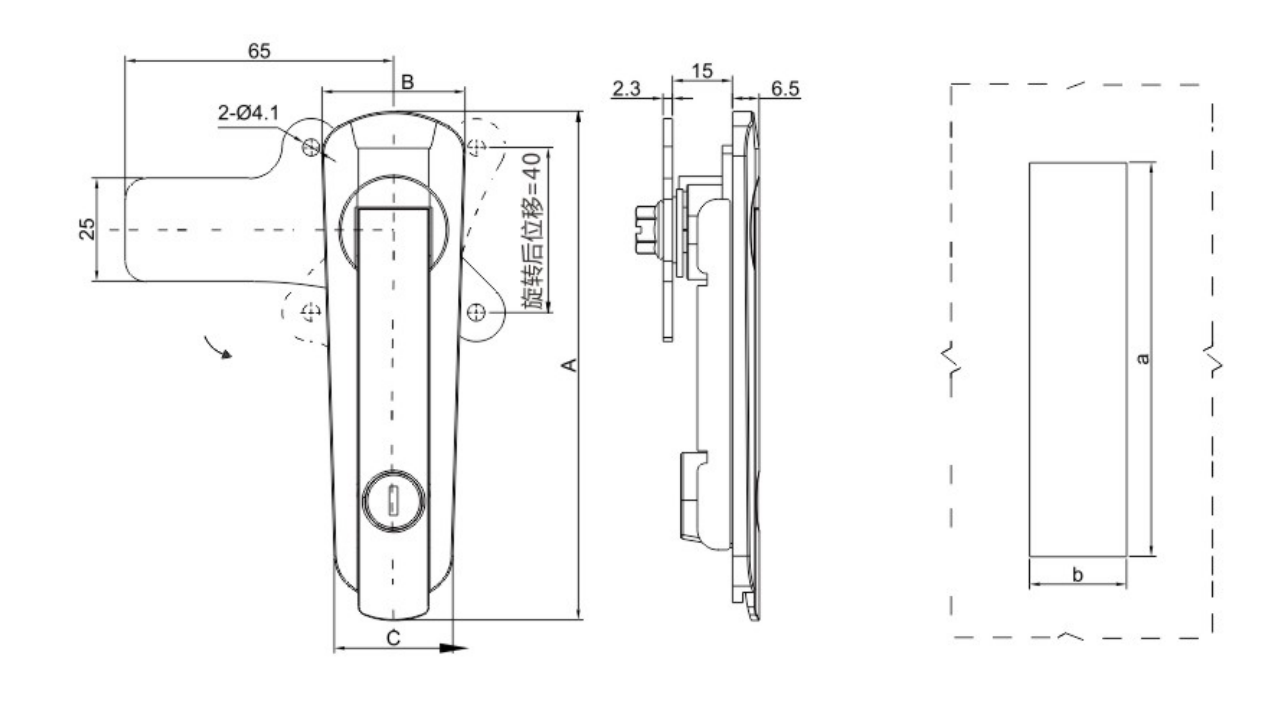

基本尺寸/Basic dimensions产品型号/Product model

产品单重(克)

Product weight per unit

装箱数

PCS

ABCab
123
35.528.795.523.5KL-AB4022235g100
923227.762.523.5KL-AB4033175g150
923227.762.523.5KL-AB4033-2123g150
