1. Material: Zinc alloy base and handle, carbon steel bolt and pressure plate
2. Surface treatment: Electroplating bright chromium/sand chromium spray black with multiple processes, accessories plated with blue and white zinc
3. Structural description: Lift the handle and rotate it 90 ° to achieve opening or locking

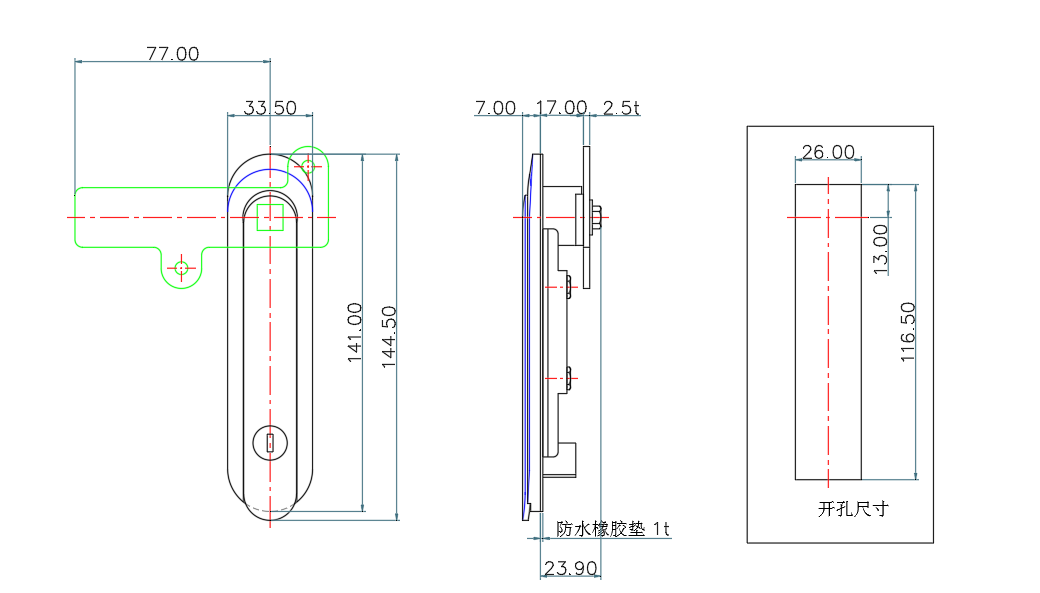

基本尺寸/Basic dimensions | 产品型号 Product model | 产品单重 Product weight per unit | 装箱数 PCS | ||||
L1 | L2 | L3 | B1 | B2 | KL-001 | 100 | |
144.5 | 116.5 | 77 | 33.5 | 26 |
