KL-311166

1.锌合金锁体、转轴、镀锌压板、锁片（可选碳钢或者不锈钢）2.表面处理：亮铬3.结构说明：通过调整定位件可实现左右开门4.可分为带挂和不带挂两个型号

PDF下载 2D下载 3D下载


  1. Zinc alloy lock body, shaft, galvanized pressure plate, lock plate (optional carbon steel or stainless steel)

  2. Surface treatment: bright chrome

  3. Structural description: left and right door opening can be achieved by adjusting the positioning component

  4.  It can be divided into two models with and without hanging

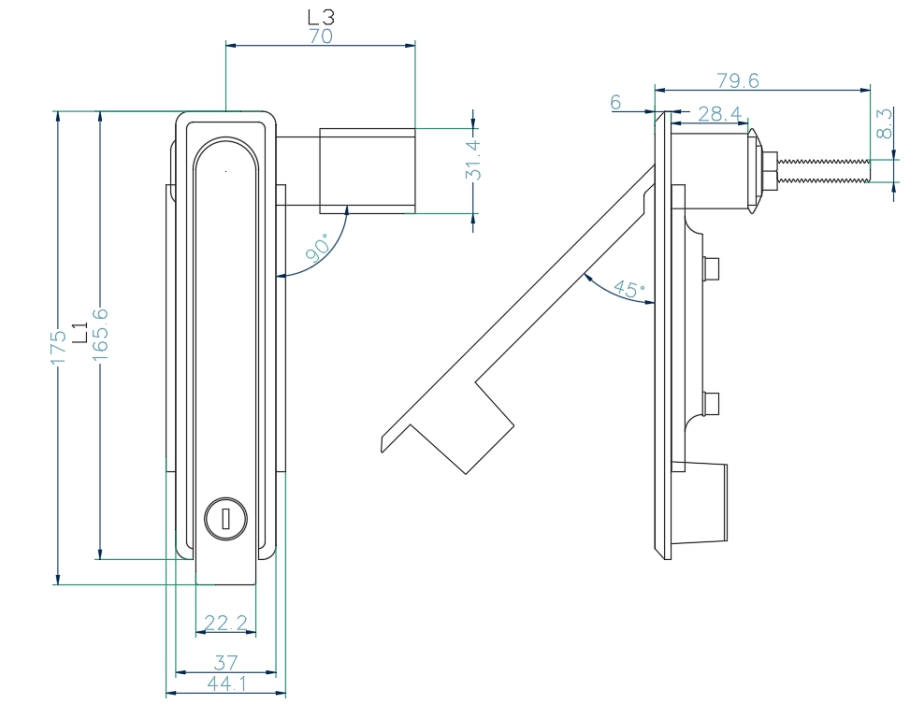

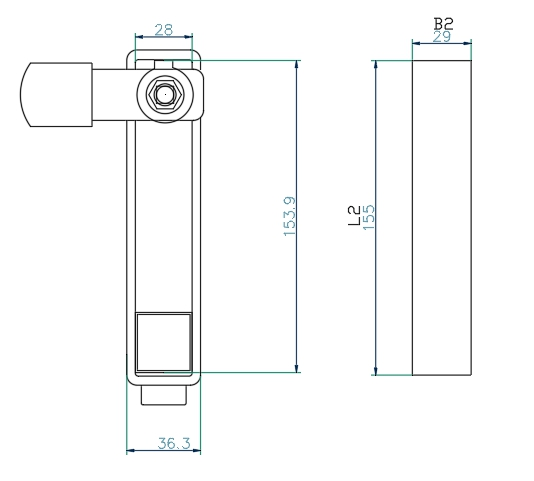

基本尺寸/Basic dimensions

产品型号

Product Model

产品单重

Weight

装箱数
L1L2L3B1B2KL-311166
40
165.61557037
29
