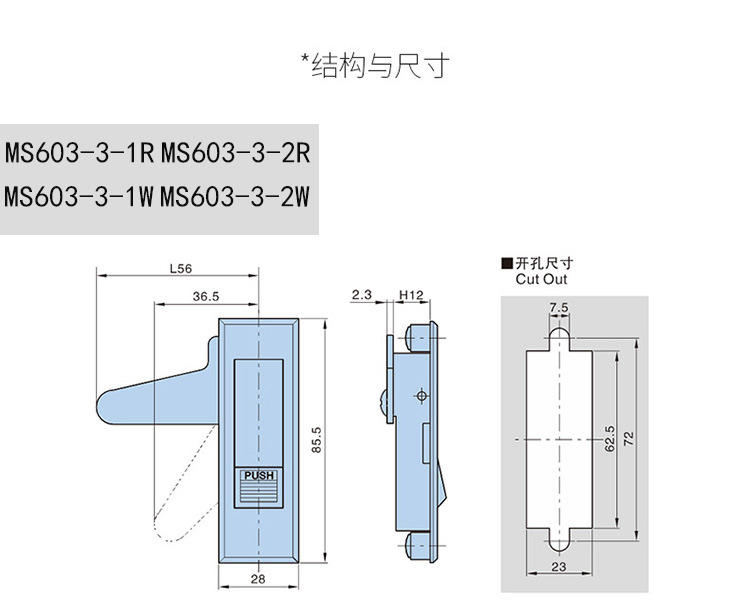

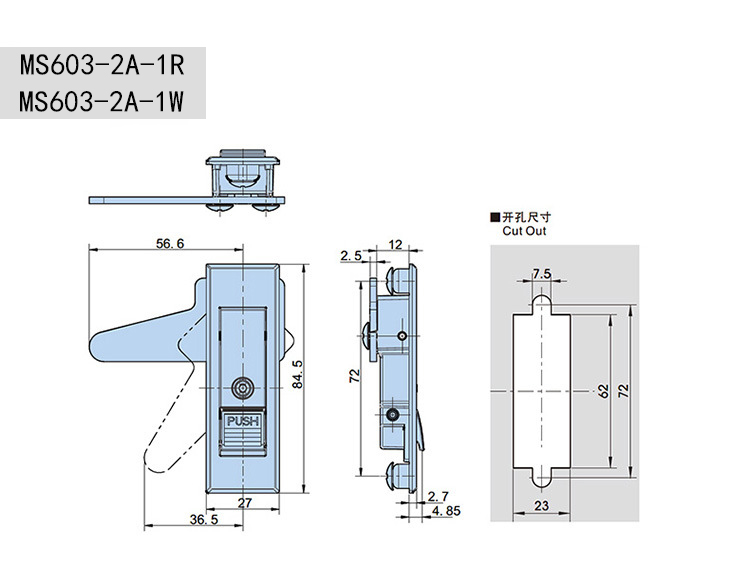

KL-MS-603

1.材料：新合金锁壳、锁背、两种按钮ABS(代号R)与锌合金（代号W)、碳钢锁片2.表面处理：喷沙镀铬3.适用门板厚度：1-4MM4.备注：锁片翻转180°，实现左右开门（适用于平锁片）



1. Materials: Zinc alloy lock shell, lock back, two types of button ABS (code R) and zinc alloy (code W), carbon steel lock plate

2. Surface treatment: Spray chrome plating

3. Applicable door panel thickness: 1-4MM

4. Remarks: Flip the lock blade 180 ° to achieve left and right door opening (suitable for flat lock blades)
