1. Material: Plastic PA body or zinc alloy body, galvanized locking plate
2. Surface treatment: Sand grain black
3. Opening method: Turn the key 180 ° to the right, pull up the handle and turn it 90 ° to the right (the positioning piece can be adjusted as needed to achieve left door opening and left rotation)
4. Applicable door panel thickness: thickness ≤ 4mm
5. Tongue rotation configuration: (4500/4505/4507)

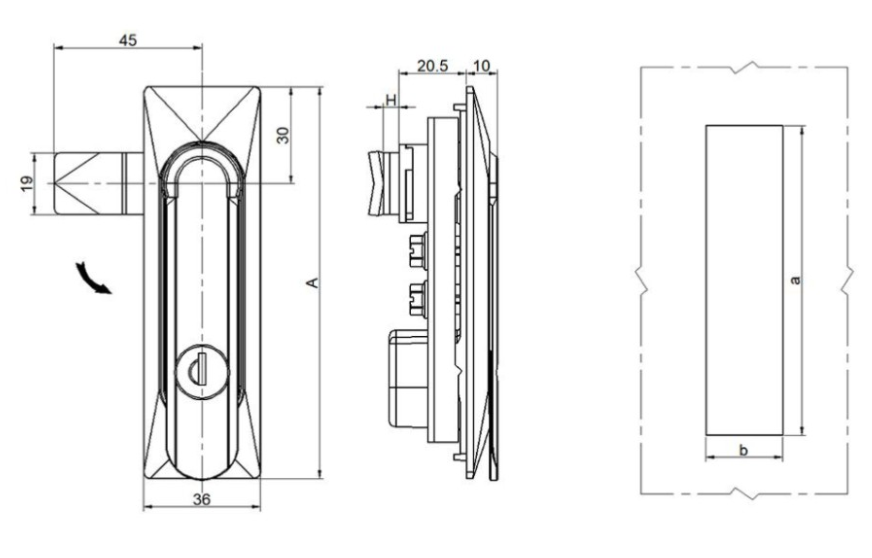

| 产品尺寸/Basic dimensions | 产品型号 Product Model | 产品单重 Weight | 装箱数 PCS | 转舌选配 Turn the tongue matching | 尺寸/Size | ||
| b | a | A | H | ||||
| 25.3 | 150 | 162 | MS861-2 | 255g | 60 | 选配4500 | 0 |
| 25.3 | 110.3 | 121 | MS861-4带锁芯 | 152g | 60 | 选配4505 | 5 |
| 25.3 | 110.3 | 121 | MS861-4无锁芯 | 145g | 80 | 选配4507 | 7 |
| 25.3 | 110.3 | 121 | MS861-4锌合金款 | 304g | 80 | ||
