KL-AB202

1.主体材质:锌合金锁体，镀锌压板、锁片2.表面处理:镀沙铬3.门板厚度: 1~2mm4.备注:KL-AB202-1锁片开孔10x10,其余型号锁片开孔8x8

PDF下载 2D下载 3D下载

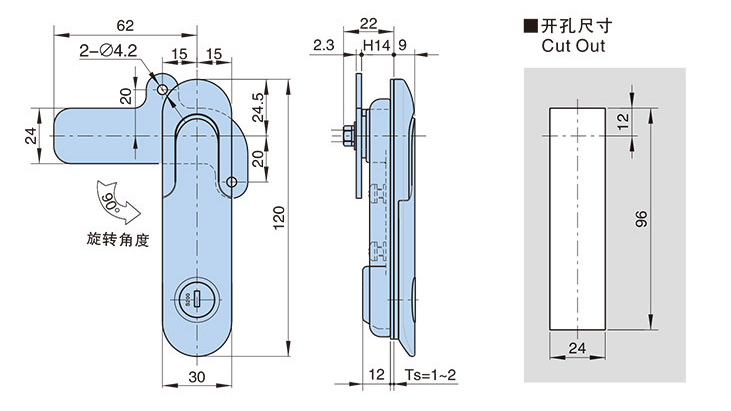

KL-AB202-1-1

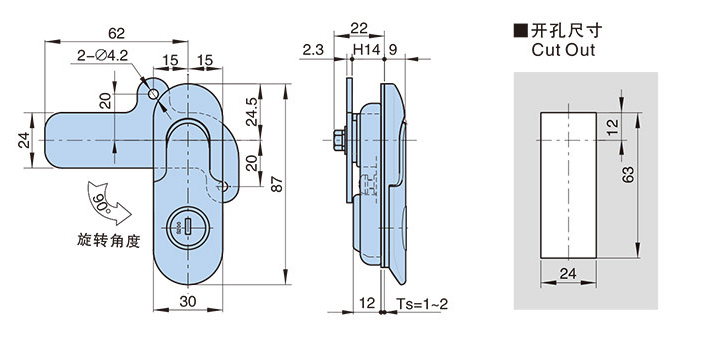

KL-AB202-2-1

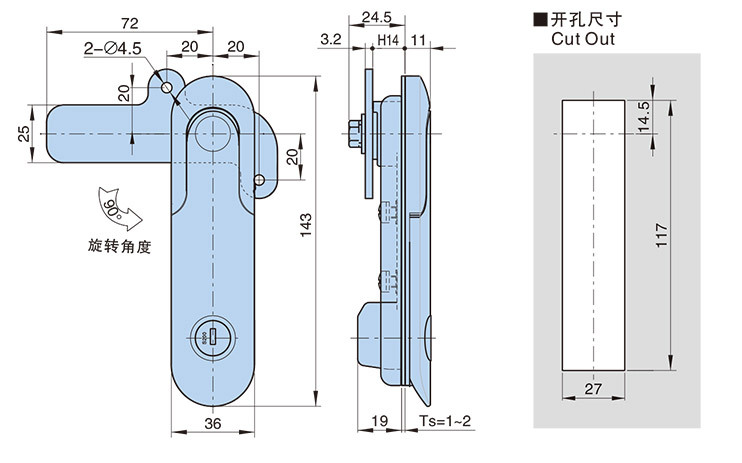

KL-AB202-3-1

1.Main material: Zinc alloy lock body, galvanized pressure plate, lock plate.

2.Surface treatment: sand chromium plating.

3.Door plate thickness: 1-2mm.

4.Remarks: KL-AB2021 lock plate hole 10x10, other models lock plate hole 8x8
