KL-AB302

1.主体材质: 锌合金锁壳.锁背.转轴.PA滑盖.镀锌压板.锁片2.表面处理:黑色3.适用门板厚度:1~3MM 4.备注:KL-AB302-1锁片开孔10x10,其余型号锁片开孔8x8

PDF下载 2D下载 3D下载

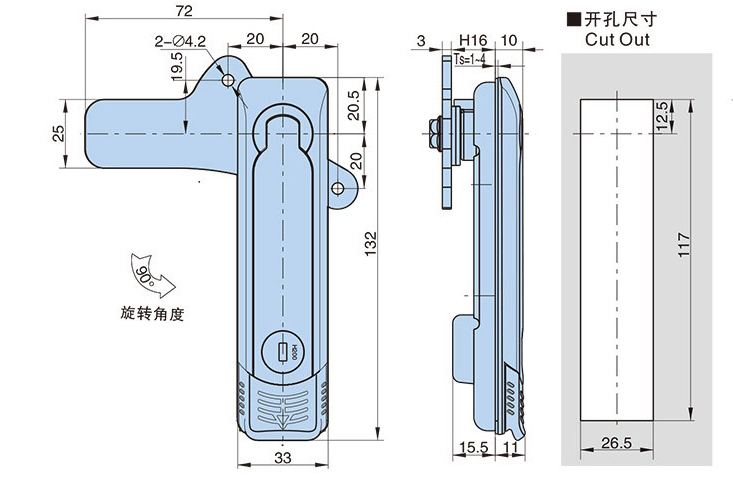

KL-AB302-1

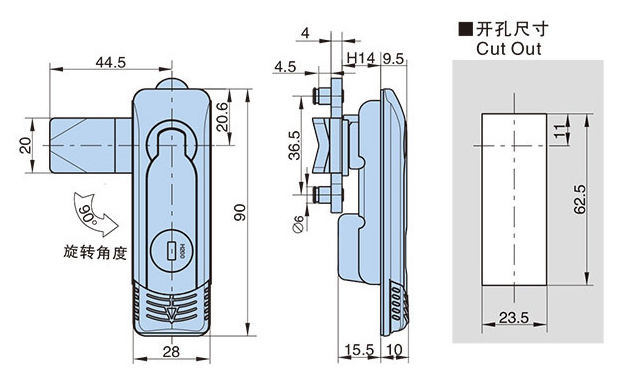

KL-AB302-2

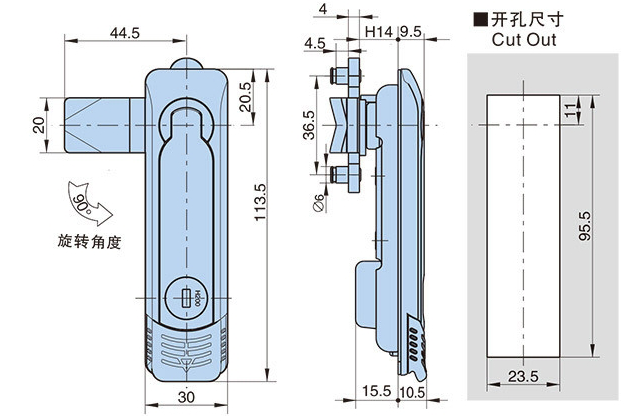

KL-AB302-3


1.Main material: Zinc alloy lock housing, lock back, and shaft PA sliding cover, galvanized pressure plate, lock plate

2.Surface treatment: black

3.Applicable door plate thickness: 1-3MM

4.Remarks: KL-AB302-1 lock plate hole 10x10, other models lock plate hole 8x8

产品型号及特性 Product Number产品单重(g)Weight装箱数Lot
喷无光黑 Black powder coated
KL-AB302-1-1.8KL-AB302-1-1.330050
KL-AB302-2-1.8KL-AB302-2-1.3235100
KL-AB302-3-1.8KL-AB302-3-1.3182100
