KL-AB2016Z

1.主体材质：优质锌合金2.表面处理：耐腐蚀、耐磨损多层电镀沙铬工艺3.门板厚度：1~2mm4.防护等级：IP65。5.使用寿命：正常开启5000次以上6.应用领域：通迅、网络、工业机柜、机械设备等

PDF下载 2D下载 3D下载

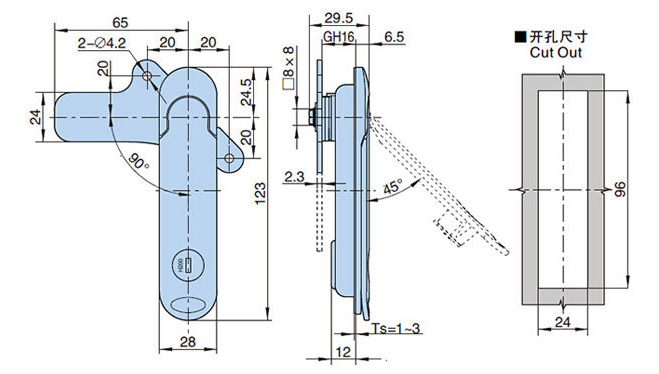

KL-AB2016Z-1

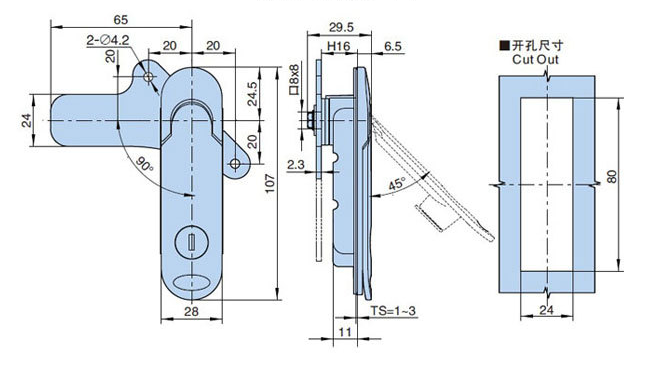

KL-AB2016Z-2

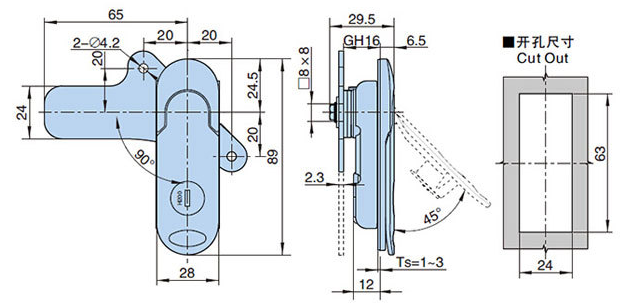

KL-AB2016Z-3

1.Main material: high-quality zinc alloy

2.Surface treatment: corrosion-resistant and wear-resistant multi-layer electroplating sand chromium process

3.Door panel thickness: 1-2mm

4.Protection level: IP65.

5.Service life: normally opened more than 5000 times.

6.Application areas: communication, network, industrial cabinets, mechanical equipment, etc
