KL-AB5011Z

1.主体材质:锌合金锁体、转轴、镀锌锁片、压板2.表面处理:镀沙铬3.适用板厚:1~3mm 4.备注:KL-AB5011Z-1-1 锁片开孔10x10,其余型号锁片开孔8x8

PDF下载 2D下载 3D下载

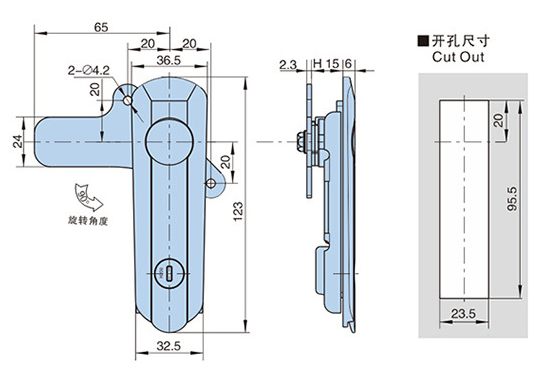

KL-AB5011Z-1-1

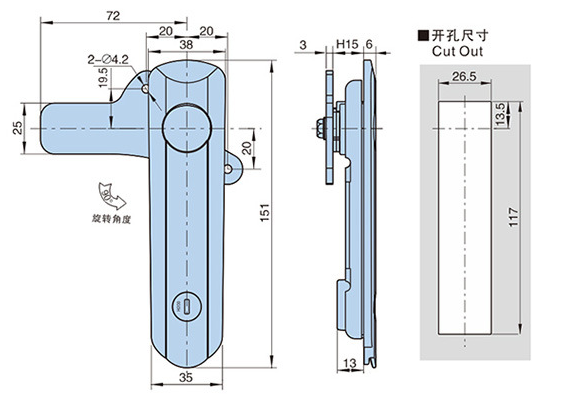

KL-AB5012Z-1-1

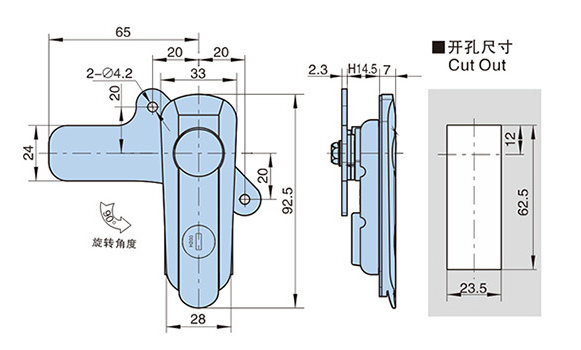

KL-AB5013Z-1-1

1.Main material: zinc alloy lock body, shaft, galvanized lock plate, pressure plate

2.Surface treatment: sand chromium plating

3.Applicable plate thickness: 1-3mm

4.Remarks: KL-AB5011Z-1-1 lock plate hole 10x10, other models lock plate hole 8x8
